Chip Quik

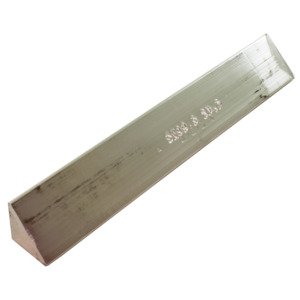

Chip Quik EXB-SN99.3CU0.7-0.5LB Solder Bar, Sn99.3/Cu0.7, 0.5lb, Extruded, Super Low Dross
Our Part #10320616
Condition:NEW
Mfr Part #EXB-SN99.3CU0.7-0.5LB
Chip Quik
Chip Quik EXB-SN99.3CU0.7-0.5LB Solder Bar, Sn99.3/Cu0.7, 0.5lb, Extruded, Super Low Dross
Our Part #10320616
Condition:NEW
Mfr Part #EXB-SN99.3CU0.7-0.5LB
RoHS
$24.67EACH
RoHS
- Description
- Specifications
- Documents
The EXB-SN99.3CU0.7-0.5LB is an Extruded High Purity Solder Bar Sn99.3/Cu0.7 1/2 lb (227g)
Features:- Extruded High Reliability Solder Bar
- Manufactured Specifically for High Quality Electronics Manufacturing (EMS, ECM, OEMs)
- Designed for Solder Pots, Wave Solder Machines and Selective Solder Machines
- Chip Quik Super Low Dross Solder Bar is Ideal for Through Hole and Surface Mount Soldering
- High Purity
- Alloy: Sn99.3/Cu0.7
- Melting Point: 227C (441F)
- Size: 0.5 lb (227 +/-10 g) bar (Ships bagged. To ensure weight tolerance is met: Full bar and/or fractional bar segments may be combined in each bag.)
- Purity: Conforms to all IPC J-STD-006C soldering alloy impurity levels
Brand: Chip Quik
Alloy Name: Sn99.3Cu0.7
Melting Point: 441°F
Lead Free: Yes
RoHS Compliance: Yes
$24.67EACH
