Hakko

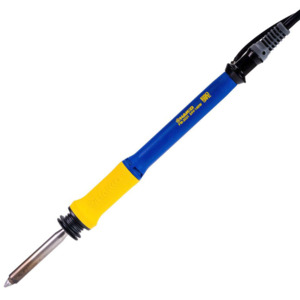

Hakko FM2031-01 Nitrogen Soldering Iron, Handpiece Only for FM-203 & FM-206 Systems, 140W, 24VAC
Our Part #HAK-FM2031-01
Condition:New
Mfr Part #FM2031-01
Hakko
Hakko FM2031-01 Nitrogen Soldering Iron, Handpiece Only for FM-203 & FM-206 Systems, 140W, 24VAC
Our Part #HAK-FM2031-01
Condition:New
Mfr Part #FM2031-01
$EACH
- Description
- Specifications
- Documents
- Uses T22 tips (not included)
- Compatible with the Hakko FM-203 soldering station and FM-206 rework system
The Hakko FM2031-01 Nitrogen compatible handpiece can be attached to the FM203 “D” port and the Hakko FM-206 CH2 or CH3 ports. It provides a higher mass tip with double the power of conventional T17 tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications.
IMPORTANT. PLEASE READ: The FM-2031 can only be attached to the Hakko FM-203 "D" port, and the Hakko FM-206 CH2 or CH3 ports. If you attach the iron to any other port, a grip error or connector error (C-E) will occur.
Note: This is the Handpiece ONLY.
Brand: Hakko
Type: Soldering Iron
Lead Free Solder Compatible: No
Voltage: 24 VAC
ESD Safe: No
For Use With: FM-203 soldering station and FM-206 rework system
Includes: Handpiece only
Power: 140 W
Temperature Range: 200-500°C
