- Rugged construction. Long life
- Balance adjustable +/-20 voltage offset. Flexibility in uses
- Replaceable air filter. Keeps air free of contaminants
- Stainless steel case. Corrosion resistant
- Stationary hose. Can be activated with foot pedal
- Adjustable 30 PSI to 100 PSI air pressure. Adjustable to meet requirements of the application
- < 1 sec discharge time at 6in
- Made in the United States of America
- Low Ozone Emissions – tests well below the OSHA limit of 0.05 ppm ozone

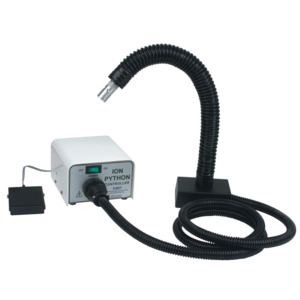

The Ion Python is a point-of-use ionizer using compressed air or nitrogen to neutralize electrostatic charges from a small, defined area and/or to facilitate removal of charged particles. These ready-to-use units are designed for use in applications and areas where ElectroStatic Attraction contamination create manufacturing or handling problems (Ref: ESD Handbook TR 20.20 paragraph 5.3.6.5.2.4 Point of Use Ionization). The Ion Python meets or exceeds the recommended technical requirements of ANSI/ESD S20.20 tested in accordance with ANSI/ESD S3.1.
NOTE: Air nozzles are recommended for intermittent applications. They require filtered, dry, non-combustible gases, such as compressed shop air or nitrogen. If using nitrogen, contact the factory for modifications and adjustments needed.
