HellermannTyton

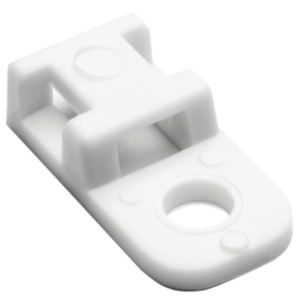

HellermannTyton CTAM110C2 Cable Tie Anchor Mount, 0.8x0.4", 0.2" Max Tie W, White, 100/Pkg
Our Part #804IE1100
Condition:New
Mfr Part #CTAM110C2
HellermannTyton
HellermannTyton CTAM110C2 Cable Tie Anchor Mount, 0.8x0.4", 0.2" Max Tie W, White, 100/Pkg
Our Part #804IE1100
Condition:New
Mfr Part #CTAM110C2
RoHS
$Pack
RoHS
- Description
- Specifications
- Documents
- Suitable for applications with minimal space.
- CTAM has 4-way entry design for use in line or at 90° angle to cable run.
- CTAM mounts are available in different sizes and materials.
Anchor Mounts for cable ties are suitable for applications with minimal space. Anchors are mounted onto the equipment prior to cable installation and take up no more space than the cable itself. Choose between a four-way entry design that can be used either 'in line' or at 90 degrees to the cable run.
Anchor Mounts. Cable ties may be inserted from any of the four sides of the mount. May be placed parallel or perpendicular to wires. 100 per package, white
- Cable Tie Series: T18 thru T50
- Mounting: #8 Screw
- Length: .400" (10.16mm)
- Width: .800" (20.32mm)
- Height: .200" (5.08mm)
Brand: HellermannTyton
Type: Anchor Mount
Alternate Product Number: 151-31103, CTAM1
Series: CTAM-Series
Color: White
Flammability Rating: UL 94 V-2
Height: 0.2"
Length: 0.8"
Material: Polyamide 6.6 (PA66)
Mounting Hole Diameter: 0.17"
Mounting Type: Screw Mount
Operating Temperature Range: -40 to 185°F
Style: Screw Mount
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.4"
$Pack
