Bird

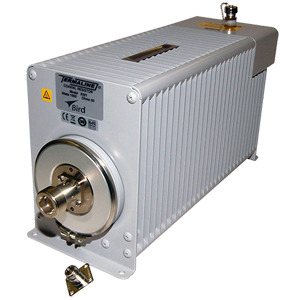

Bird 8251D7-16 RF Coaxial Termination, Oil-Cooled, 1000 Watt, 860 MHz, 7/16" IEC, 8251 Series
Our Part #60051.1
Condition:New
Mfr Part #8251D7-16
Bird
Bird 8251D7-16 RF Coaxial Termination, Oil-Cooled, 1000 Watt, 860 MHz, 7/16" IEC, 8251 Series
Our Part #60051.1
Condition:New
Mfr Part #8251D7-16
$3,223.50EACH
- Description
- Specifications
- Documents
- RF Loads are portable, self-contained general purpose 50 ohm coaxial transmission line RF terminations requiring no outside power source or additional equipment
- The loads are Oil-assisted convection cooling for safe, continuous operation up to 1000W full rated power
- They provide accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions
- The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant
- The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor
Brand: Bird
Connector Type: 7/16" IEC
Series: 8251 Series
Certifications: RoHS
Dimensions: 18 x 6 x 8.5"
Finish: Gray Powder Coat
Frequency Range: 470-860 MHz
Impedance: 50 Ω
Operating Temperature Range: -40-45°C
Power: 1000 W
Special Features: Oil-Cooled
$3,223.50EACH
