Bird

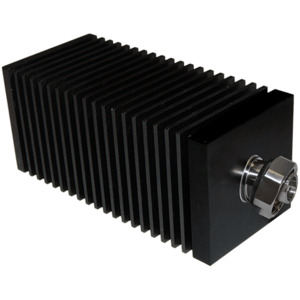

Bird 100-ST-MD RF Coaxial Termination, Convection-Cooled, 125 Watt, 4 GHz, 4.1/9.5 DIN Male, 100-ST
Our Part #59057.1
Condition:New
Mfr Part #100-ST-MD
Bird
Bird 100-ST-MD RF Coaxial Termination, Convection-Cooled, 125 Watt, 4 GHz, 4.1/9.5 DIN Male, 100-ST
Our Part #59057.1
Condition:New
Mfr Part #100-ST-MD
$EACH
- Description
- Specifications
- Documents
- Self cooling design, needs no cooling plate
- Rugged Reliability provides years of trouble free use
- Compact size, tapped mounting holes for fixed installations
- Load requires no AC power
Brand: Bird
Connector Type: 4.1/9.5 DIN, Male
Frequency: 6 GHz
Series: 100-ST Series
Certifications: RoHS, EN 61010-1:2010
Dimensions: 7.4 x 2.8 x 2.8"
Finish: Black Anodized Fins
Impedance: 50 Ω
Operating Temperature Range: -40-40°C
Power: 100 W
Special Features: Convection-Cooled
