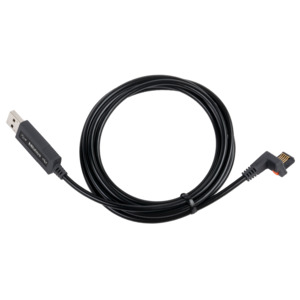

This input tool allows you to directly connect Digimatic measuring devices to a USB interface, without needing additional software. Measurement data is converted into keyboard codes, enabling interaction with any program such as Microsoft Excel working with keyboard entries (HID).

By adding the optional USB-ITPAK software the following additional features are made available.
■ Fixed COM assignment in Microsoft Windows as channel identification (VCP).
■ Creation of worksheets and multi-channel input for measurement values to Microsoft Excel.
■ Timed data requests.
■ 20 Cables can be cascaded via a standard USB hub.

USB-ITN-F, Does not incorporate a data switch, so an instrument fitted with a switch is required in order to use the instrument alone. (However, the tool can be used with USB-ITPAK.)
