Metcal
Metcal

Metcal SCP-CH10 Soldering Tip, Rework Cartridge, Chisel, 1x9.2mm, 30 Angle, 450 Deg. C, SCP Series

Our Part #551SO7643

Condition:New

Mfr Part #SCP-CH10

Metcal SCP-CH10
Metcal
Metcal

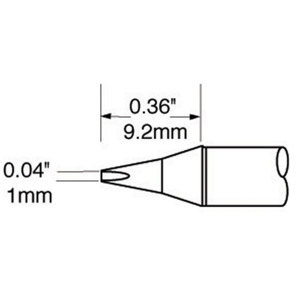

Metcal SCP-CH10 Soldering Tip, Rework Cartridge, Chisel, 1x9.2mm, 30 Angle, 450 Deg. C, SCP Series

Our Part #551SO7643

Condition:New

Mfr Part #SCP-CH10

$EACH

SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems. The second letter in the part number designates the temperature series. The SFP temperature series are nominally 390 ˚C. Metcal recommends the SFP-series for most applications. However, Metcal offers a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications. STP-series are nominally 330 ˚C for light load application. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" adjusts power levels automatically based on the demand of the application.

Brand: Metcal
Series: SCP Series
Tip Length: 9.2 mm
Temperature Rating: 450°C
Angle: 30 Deg.
Applications: Ceramic and High Thermal Demand
Fits: Metcal MFR-H1-SC Handpiece
For Use With: Metcal MFR-1110, MFR-1161, MFR-2211, MFR-2241 Systems
Lead Free Solder Compatible: Yes
Material: Ceramic
Tip Diameter: 1 mm
Tip Shape: Chisel
$EACH
