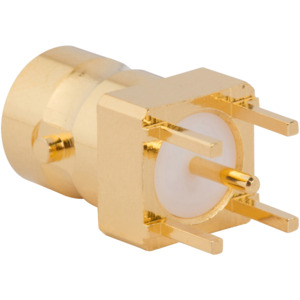

Mini-BNC Connectors

Features and Benefits:

• Crimp ferrule and contact design compatible with standard tooling
• Same footprint on the jack side, making the Mini BNC a drop-in replacement for most high-density applications using SMB or SMZ jacks
• 75 ohm performance for 3G video
• Bayonet locking coupling mechanism
• Compact version of standard BNC

The Mini BNC connector series offers the high performance and wide compatibility of the original Amphenol 75 ohm BNCs. However, the Mini-BNC has a higher connector density, allowing for 40% more interconnects in the same area.

The Mini BNC series expands on the SMB and SMZ series, providing a positive locking bayonet system, in contrast to the SMB and SMZ push-on mating. In addition, the Mini BNC is specifically designed to be a drop-in replacement and used with Telco and broadband applications.

The Mini BNC is compatible with standard field installer crimp tooling and strip dimensions.

Applications:

• Antennas
• Medical Equipment
• Automotive (GPS)
• Computers/LANs
• Military/Aerospace
• Base Stations
• Cable Modems
• Instrumentation
• Network Analyzers
• Telecommunications
