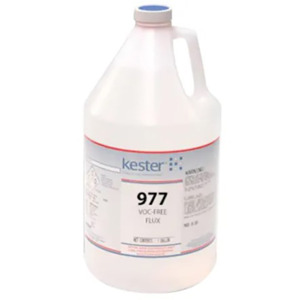

Kester 63-0000-0977 Soldering Flux 977, VOC-Free, No-Clean, 1 Gal

Our Part #488SO977

Condition:New

Mfr Part #63-0000-0977

Kester 63-0000-0977
Kester
Kester

Kester 63-0000-0977 Soldering Flux 977, VOC-Free, No-Clean, 1 Gal

Our Part #488SO977

Condition:New

Mfr Part #63-0000-0977

$56.08GALLON
Quantity on Order:52
Estimated Mfr lead time:28 Days
Qty:Price:Savings
1$56.08
5$53.28Save 5%
10$50.47Save 10%
25$47.67Save 15%
  • Biodegradable at pH of 2.0 or greater
  • Chemically compatible with most solder masks and board laminates
  • Does not degrade Surface Insulation Resistance
  • No offensive odors
  • Bright, shiny solder connections
  • Classified as ORL0 per J-STD-004
  • Compliant to Bellcore GR-78

Kester 977 is an organic water-soluble, water- based, no-clean chemistry for high quality soldering of electronic circuit board assemblies. Designed for wave soldering applications, Kester 977 provides good wetting on most surface finishes. The flux was specifically designed to reduce bridging, which is commonly associated with VOC -free no-clean fluxes. Kester 977 has excellent soldering properties for improved productivity without sacrificing reliability of the assembly. The flux leaves bright shiny solder joints and will not attack properly cured solder masks or FR-4 Epoxy-Glass laminate. The minimal amount of residue remaining after soldering is non-conductive, non-corrosive and need not be removed. The residues left after soldering will not interfere with in-circuit testing. Kester 977 is not detrimental to the Surface Insulation Resistance (SIR) of the soldered assembly.

BrandKester
Container Size1 gal.
Container TypeGallon Jug
Flux TypeNo-Clean
For Use WithPS-20 or PS-22 Test Kit
TypeVOC-Free
Physical StateLiquid
Compliant SpecificationsBellcore Issue 1 GR-78-CORE & ANSI/J-STD-004 Flux designator ORL0
Percent Solids3.25 %
Specific Gravity1.012 ± 0.010
