Global Specialties PB-502 Advanced Logic Design Trainer

Features and Specifications

• 840 tie-point breadboard area using a UBS-100
• Premium breadboarding area with 8 power rails
• Accomodate up to eight 14-pin DIP ICs
• Built-in Clock (1 Hz, 1 kHz, 100 kHz)
• Logic Switches (SPDT Vcc or Ground - 200 mA max)
• Logic Indicators (100 kilohm impedance)
• Pulser - Two fully debounced pushbuttons with true logic outputs
• Selectable TTL or CMOS operating voltages
• Triple output power supply: +/- 12V, 200mA and 5V, 250mA
• 2 BCD-input 7-segment displays w/ separate DE, LE, LT
• Molded plastic carrying case

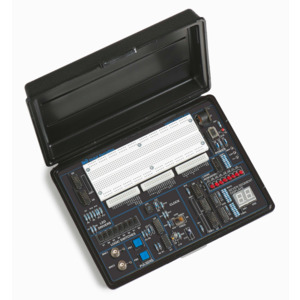

The portable and robust PB-502 Advanced Logic Design Trainer is well suited for requirements in the design and study of digital logic circuitry. Its selectable operating voltage allows the trainer to be used in either TTL or CMOS operating mode. The trainer contains three integral power supplies and input/output devices that simplify the construction of a wide range of circuits. For example on the PB-502, you can build operational amplifiers, comparators, A to D converters, gates and counters. Students using the PB-502 will learn valuable hands-on breadboarding techniques and build a solid foundation in digital logic circuit experimentation, construction and analysis.

Construct a wide variety of experiments

• Logic Gates and Boolean
• Algebra
• Combinational Logic
• Circuits
• Flip-Flops
• Counters and Register
• Circuits
• Integrated Logic Circuits
• TTL Logic
• MOSFETS
• CMOS
• Interfacing CMOS and TTL
• Medium Scale Integration
• Decoders
• Encoders
• Data Conversion and Acquisition

What's in the Box

• PB-502 Trainer
• Wall adapter
• Power cord
• User manual
