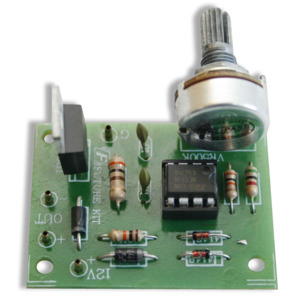

Global Specialties GSK-804 DC Motor Speed Control Kit

Features and Specifications

• Power source: 12 VDC
• Load voltage: 12 VDC, 1.5 A max.
• Output: controlled DC motor by pulse width modulation (PWM)
• Output Target DC motor (not included)
• PCB dimensions: 1.76 x 1.32 inches

This circuit allows the user to vary the speed of a DC motor from a stop position to maximum revolutions per motor specification.
