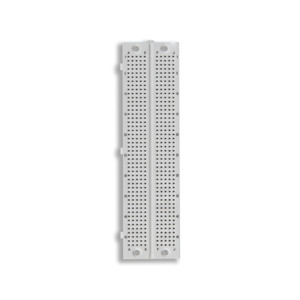

Global Specialties GS-470 Solderless Breadboard

Features and Specifications

• 470 Tie-Point
• Maximum capacity of 1.5 A at 36 V
• ABS plastic body
• Nickel plated phosphor bronze spring clip contacts
• Allowable wire diameter of 0.4-0.7 mm
• Fits 5 total 16-pin ICs
• Measures 5.25 x 1.375 x 0.33 in
• Peel and stick adhesive

A modular type solderless breadboard, the GS-470 connects with the GS-080 bus strip to make a 630 tie point breadboard (GS630A). Expandable in two dimensions, it is a great way to prototype low frequency or DC powered circuits.
