Cal Test Electronics GE1522 1:1/10:1 13/135 MHz Passive Oscilloscope Probe
Features and Specifications
- Attenuation: 1x/10x
- Bandwidth: 13/135
- Max Input Voltage (DC + AC peak): 500 V CAT II
- Length: 2m
The GE Series probe GE1522 is a high-impedance, passive-voltage oscilloscope probe designed for use with most general-purpose oscilloscopes having an input impedance of 1 megohm shunted by 13 pF, however model GE1522 may be compensated for use with instruments having an input capacitance between 10 to 30 pF.

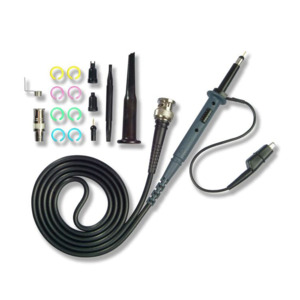

What's in the Box
- CT2709A Sprung Hook, 5 mm, Red - 1
- CT2710-12-0 GND Lead w/Alligator Clip - 1
- CT2708 BNC Adapter, 5 mm - 1
- CT2711A-0 Replacement Tip, Black - 1
- CT3648 Deluxe Trimmer Tool - 1
- CT2713A IC Tip Insulator, 5 mm, Black - 1
- CT2712A Tip Insulator, 5 mm, Black - 1
- CT4408 Probe Tip Cover, 5 mm, - 1
- CT3662 Color Coding Rings (Blue, Green, Red, Yellow) - 2 each
- 10 CT2714 Probe Tip GND - 1
Brand: Cal Test Electronics
Bandwidth: 135 MHz
Attenuation: 1X, 10X
Input Capacitance: 65 pF
Max Input Voltage: 500 V
Cable Length: 2 m
Safety Rating: CAT2
Series: 1500 Series
