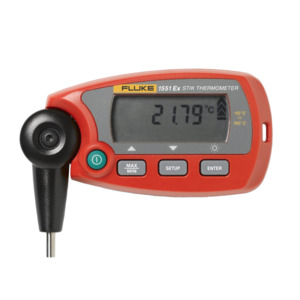

Fluke 1551A-20-DL Stik Thermometer and Temperature Calibrator

Features and Specifications

• Fixed resistance temperature detector (RTD) sensor
• Intrinsically-safe, battery operated, portable reference thermometer
• Provides accuracy of +/-0.05deg C (+/-0.09deg F) over full range
• Features intrinsically-safe operation (ATEX and IECEx compliant)
• Measures -50deg C to 160deg C (-58deg F to 320deg F)
• Provides user-configurable temperature with Trend/Stability indicator
• Displays temperature in Degrees C or F
• Probe: 6.35 mm x 508 mm (1/4 in x 20 in)
• Minimum immersion depth: Wet medium 70 mm (2.8 in) / Dry medium 120 mm (4.8 in)
• Maximum immersion depth: 50 mm (2 in) less than the total length.
  Make sure the last 50 mm of probe, nearest to the internal electronics of the device, are not put into the heat source.
• Data logging to internal memory of up to 10,000 time-stamped measurements

The Best Alternative to Mercury Thermometers

The Fluke Calibration 1551A-20 "Stik" Thermometer is the new "gold standard" of industrial temperature calibration. Its stainless steel probe and digital readout are fixed together and calibrated as a system. Its large backlit LCD display can rotate 90 degrees which ensures readability from any angle. It also features a user-adjustable stability/trend indicator that signals when the temperature is steady enough for an accurate reading to be taken. The device includes a user-programmable auto-off feature that can prolong the typical battery life to as much as 300 hours. A low-battery indicator and a stop-measure function are also incorporated to prevent inaccurate measurements due to a depleted battery. Plus, you can easily and accurately calibrate the 1551A with a simple three-point calibration function.

"Stik" Thermometer Series

Whether working outdoors in environments where potentially explosive gases may be present or on the floor of a processing plant, the "Stik" series are intrinsically-safe, battery operated, portable reference thermometers designed to go where you work. There are two models to choose from, the 1551A (-50 C to 160 C) or 1552A ( -80 C to 300 C) each with varying probe versions.

The thermometer's probe contains a fast-responding thin-film sensor that makes accurate measurements quickly and with minimal immersion depth. The Probe is available in three versions:

• 4.8 mm x 229 mm (3/16 in. x 9 in.)
• 6.35 mm x 305 mm (1/4 in. x 12 in.)
• 6.35 mm x 508 mm (1/4 in. x 20 in.)

With a superior probe design combined with electronic functions that assist accurate measurement, the "Stik" Thermometer surpasses the capabilities of other digital thermometers.

Data logging options: append "–DL" to your model number of choice to configure your “Stik” Thermometer with the data logging option.

What's in the Box

• 1551A-20 Thermometer 1/4 in x 20 in Probe w/ Data Logging
• NVLAP-accredited report of calibration
• User's Guide on CD-ROM
• Three AAA batteries
