Pomona

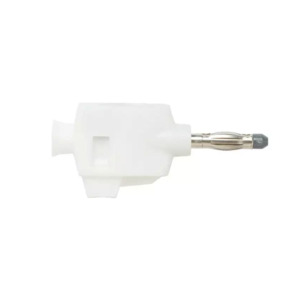

Pomona 73090-9 Banana Plug, Quick Wire Attachment, 20 A, Nickle Plated, White, 73090 Series
Our Part #35648.1
Condition:New
Mfr Part #73090-9
Pomona
Pomona 73090-9 Banana Plug, Quick Wire Attachment, 20 A, Nickle Plated, White, 73090 Series
Our Part #35648.1
Condition:New
Mfr Part #73090-9
CallEACH
- Description
- Specifications
- Documents
- Attach wires quickly with the push-button tab for easy assembly or test lead repair
- No soldering or set screws required; simply, push and hold the push tab, insert the stripped test lead wire (strip 4-6mm of insulation), and release the push tab to secure the wire down
- Great in low voltage applications where prototyping and quick wire attachments are important
- Make 4mm banana plug patch cords conveniently in the field
- Designed to fit on the end of any 22 AWG to 18 AWG wire gauge
Brand: Pomona
Series: 73090 Series
Voltage: 70 V
Color: White
Contact Finish: Nickel Plated
Contact Material: Brass, Steel
Current: 20 A
Insulation Material: Polypropylene, Polyoxymethylene
Resistance: 10 MΩ
Wire Size: 18-22 AWG
