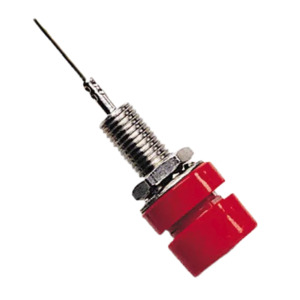

Pomona 4022-2 Banana Jack w/Wire Wrap Terminal, 3 A, Brass, Nickel Plated, Red, 4022 Series

Our Part #35377.1

Condition:New

Mfr Part #4022-2

Pomona 4022-2
Pomona
Pomona

Pomona 4022-2 Banana Jack w/Wire Wrap Terminal, 3 A, Brass, Nickel Plated, Red, 4022 Series

Our Part #35377.1

Condition:New

Mfr Part #4022-2

CallEACH
  • Accepts miniature banana plugs.
  • Mounts in panels up to .250” thick.
  • Terminal: Gold Plated Phosphor Bronze
  • Lockwasher #8 Internal Tooth: Steel. Nickel plated per QQ-N-290 Class 2, 200/300 microinches.
  • Wrapped Wire Terminal: Beryllium Copper. Gold plated per MIL-G-45204, Type II Class 00 over electroless nickel per MIL-C-26074, Class 1, 200/300 microinches.

BrandPomona
Series4022 Series
Voltage1500 V
ColorRed
Current3 A
FinishNickel Plated
Insulation MaterialPolycarbonate
MaterialBrass
Maximum Temperature239°F
