FLUKE-1777/BASIC Three-Phase Power Quality Analyzer (No probes)

The 1777 three-phase power quality analyzer (PQA) is a rugged, portable device for troubleshooting power quality. Engineered to be the faster, easier way to perform power quality studies, it offers automatic measurements, a straightforward user interface and setup, best-in-class specifications, and a simplified reporting platform. Its compact size and power supply from the measurement line makes it a versatile tool for live measurements and long-term logging.

Features

• Automatically measure power and power quality parameters

• At-a-glance power quality health for faster troubleshooting

• Easily view V/A/Hz, power, dips, swells, and harmonics data

• Capture high-speed transients up to 8 kV

• Power directly from measurement circuit without a line cord

• 2 auxiliary measurement inputs for measurements of non-electrical units: temperature, humidity, light intensity

• Simple data downloads using USB memory stick, wired Ethernet, USB cable, or optional WiFi, LTE modules

• GPS time synchronization

• Data storage via 32 GB microSD card (installed)

• User-accessible micro SD slot for flash memory expansion

• 7-inch TFT, 1024 x 600 pixels with capacitive touch

• Compliant to international standards: IEC 61000-4-30 Class A edition 3, conformance to EN 50160 and IEEE 519

• Integrated internal power supply with 90-minute battery

• Standard with the powerful Fluke Energy Analyze Plus software




Note: BASIC models do not include current probes or WiFi/BLE adapters.

Specifications

Voltage Input

• Number of inputs: 4 inputs, 3 phases and neutral referenced to PE

• Measurement category: 1000 V CAT III / 600 V CAT IV

• Maximum input voltage: 1000 V rms / 1000 V dc (1700 Vpk)

• Input impedance: 10 Mohm (P-P & P-N), 5 Mohm (P-PE & N-PE)

• Bandwidth: DC to 30 kHz for PQ measurements, excluding transients

• Resolution: 24-bit synchronous sampling

• Sampling frequency: 80 kS/s at 50/60 Hz

Voltage Transients

• Measurement range: +/-8 kV

• Sampling rate (1777): 1 MS/s, 20 MS/s

• Trigger Adjustable trigger level.
  Triggers on high-frequency components > 1.5 kHz

• Bandwidth: DC to 1 MHz

Current Inputs

• Number of inputs: 4 inputs 3 phases and Neutral, range selected automatically to attached sensor

• Range AC (probe/clamps sold separately):

  • 1 A to 1500 A with i17XX-FLEX1500 12 inch

  • 1 A to 1500 A with i17XX-FLEX1500 24 inch

  • 3 A to 3000 A with i17XX-FLEX3000 24 inch

  • 6 A to 6000 A with i17XX-FLEX6000 36 inch

  • 40 mA to 40 A with clamp i40s-EL

  • 4 A to 400 A with clamp i400s-EL

• Range DC (probe/clamps sold separately):

  • 20 A to 2000 A with 80i-2010-EL clamp

• Bandwidth: DC to 30 kHz

• Resolution: 24-bit synchronous sampling

• Sampling frequency: 80 kS/s at 50/60 Hz

• Scaling: 1:1, variable

• Input voltage:

  • Clamp: 50 mV / 500 mV rms; CF 2.8

  • Rogowski Coil: 15 mV / 150 mV rms at 50 Hz, 18 mV / 180 mV rms at 60 Hz

• Input impedance: 11 kilohm

Automatic Measurement Capture

The analyzer's system automatically records over 500 power quality parameters by default, ensuring you always gather the right data. You still have the flexibility to fine-tune and select specific parameters as needed. A guided setup simplifies configuration, and with Fluke Energy Analyze Plus software, you can instantly view, download, and share logged data—no need to wait until the session ends.

Reliable Measurement Confidence

The built-in ‘PQ Meter’ function provides real-time data on-site, helping you quickly spot issues during troubleshooting. The ‘PQ Logging and Analysis’ feature walks you through setup, making complex power quality studies easier. Combined with an automatic connection correction feature, you can trust your measurements are accurate the first time—no need for repeat visits.

High-Speed Voltage Transient Detection

Voltage transients can silently damage systems, leading to insulation breakdowns or complete equipment failure. This analyzer uses advanced technology to detect both impulsive and oscillatory transients, giving you the insights needed to prevent costly damage.

Harmonics Compliance Monitoring

When data is downloaded, the Energy Analyze Plus software can compare harmonic data against standards like EN 50160 or IEEE 519 to determine if they exceed compliance limits. This helps detect current harmonics before they distort voltage, allowing for proactive maintenance and improved system reliability—especially important with the rise of inverter-based systems.

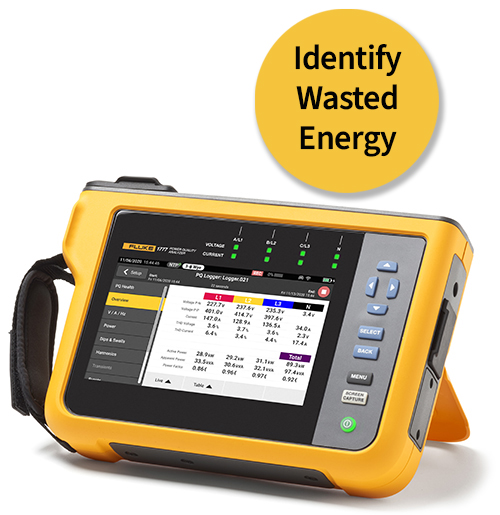

Energy Loss in Real Money

The Energy Loss Calculator (ELC) mode identifies where energy is being wasted in your system using Fluke’s patented Unified Power calculation, translating inefficiencies into actual financial losses.

Wasted energy comes from:

• Transmission of effective power – Heat generated as power flows through cables

• Reactive power – Does not drive the load but consumes energy

• Unbalance losses – Unbalanced loads contribute to wasted energy

• Distortion power – Non-linear loads create harmonics that consume power, but do not perform work

• Neutral losses – Neutral losses can be due to both unbalance and harmonics, leading to increased heat and requiring larger conductors

Powerful Analysis Software with Easy-to-Create Reports

Energy Analyze Plus helps you evaluate power quality data right out of the box and without extensive training. It makes downloading, analyzing, tracking, and reporting power quality and energy data easier than ever. Quickly compare results to historical values, benchmark against industry norms, compare measured data to local conditions, and create a more complete picture of what’s occurring across your facility—all while data is still being collected.

1770 Series of Power Quality Analyzers

The Fluke 1770 Series is built for safety and ease of use in any testing environment. It captures a comprehensive range of power quality parameters, including fast waveforms, transients, and high-frequency harmonics. These analyzers are suitable for both service entrance and downstream applications, handling both AC and DC inputs and measuring harmonics up to 30 kHz. No matter the job, make informed decisions with the use of the 1770 Series.

1770 Series Front Panel

1. Power ON/OFF

2. Touch screen

3. Status LEDs Current and Voltage

4. Cursor controls

5. Select

6. Back

7. Menu

8. Screen Capture

1770 Series Connector Panel

1. Ethernet

2. Power Supply Input 600 V 50/60 Hz 40 VA

3. Voltage measurement inputs (3 phases + N)

4. Earth/Ground measurement input

5. Auxiliary 1/2 Input

6. FieldSense input

7. Current measurement inputs (3 phases + N)

8. USB-C connector

9. USB 2.0 Type-A connector

10. LTE Communications expansion port

11. WiFi/BLE

12. GPS antenna

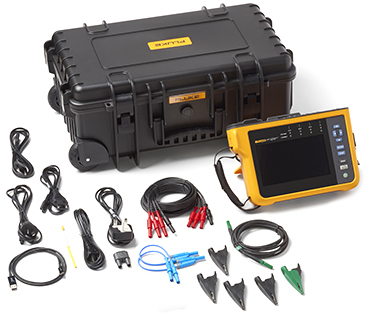

What's in the Box

1777-BASIC contents:

• FLUKE-1777 Power Quality Analyzer

• FLUKE-17XX flat cable voltage test lead 3-phase+N

• AC285 black alligator clip

• AC285 green alligator clip

• Black 1m USB-C cable

• Line cord

• FLK-17XX 0.18M test lead set

• Green test lead

• Cable marker set (for voltage and current)

• FLUKE-174X-MA-C8 wall outlet adapter

• FLUKE-1777 HARDCASE rolling hard case
