• 4 Flex channels / 1 GHz bandwidth
• Each Flex channel can accommodate one analog signal or eight digital logic inputs
• TLP058 logic probe sold separately
• It is possible to use combinations of analog and digital signals simultaneously (3 analog/8 digital, 2 analog/16 digital, etc)
• 6.25 GS/s sample rate (all analog/digital channels)
• 31.25 Mpt standard record length (62.5Mpt via option SUP4-RL-1)
• Built-in 50 MHz arbitrary/function generator (option SUP4-AFG)
• 13.3” capacitive touch screen with gesture support (1920 x 1080)
• Synchronized, multi-channel spectrum analysis facilitates noise hunting and RF measurements
• 12 bit ADC (up to 16 bit in high res mode)

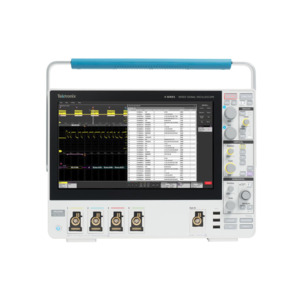

The Tektronix 4 Series B MSO sets a new standard for performance, analysis capabilities and overall user experience in bench oscilloscopes -- ideal for debugging and validating embedded systems and power converters. The second generation of this instrument incorporates a new processing platform, more than doubling its responsiveness, and significantly accelerating measurements and data transfers with full support for remote operation and control. Models are available with 4 or 6 FlexChannel inputs for high visibility into designs. High-resolution 12-bit sampling delivers precise measurements on a new higher-contrast 13.3-inch HD display. And synchronized, multi-channel spectrum analysis facilitates noise hunting and RF measurements.

This exceptional measurement performance is paired with an intuitive award-winning user interface making it easy to achieve fast, accurate results.
