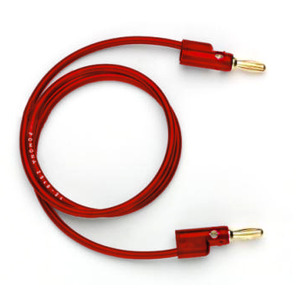

2948 Stacking Standard Banana Plug Each End

Features:

• Multiple stacking feature accommodates the most complex stacking; keeps circuitry neater
• Greatly simplifies circuit connections and changes
• Reliable solder bonded connections withstand pull test in excess of 50 lbs
• Vertical and cross stackable
• Mates to Model #1581, 2854 or any standard banana jack
• Insulation: Polypropylene molded to plug body and wire
• Wire: 18 AWG stranding 65 x 36 t.c.
• Operating Temperature: +55C (+131F) Max
• Operating Voltage: Hand-held testing: 30VAC/60VDC Max
• Hands free testing in controlled voltage environments: 5000 WVDC Max
• Current: 15 Amperes
