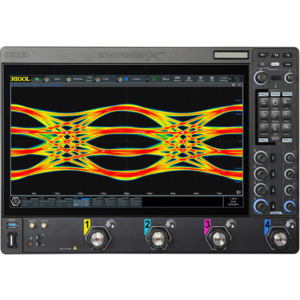

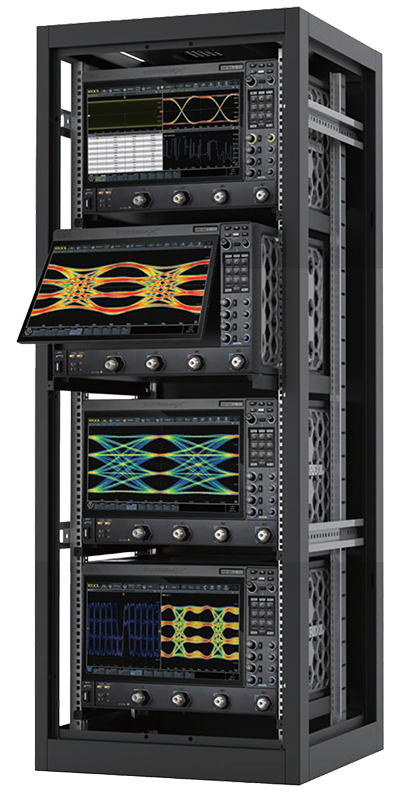

DS80000 Series High Resolution Digital Oscilloscopes

• Built on RIGOL's brand new core module

• 4 analog channels, 1 EXT channel

• Max. waveform capture rate: 250,000 wfms/s

• Vertical resolution: 8-16 bits adjustable

• Vertical sensitivity range: 1 mV/div ~ 1 V/div (50Ω)

• Timebase range: 20 ps/div~1 ks/div

• N-in-1 instrument, including digital oscilloscope, digital voltmeter, 8-digit frequency counter and totalizer, and protocol analyzer (option)

• Various trigger functions: Zone trigger, Edge trigger, Pulse trigger, Slopetrigger, Video trigger, Pattern trigger, Duration trigger, Timeout trigger, Runttrigger, Window trigger, Delay trigger, Setup/Hold trigger, Nth Edge trigger, RS232/UART, I2C, SPI, CAN, FlexRay, LIN, I2S, and MIL-STD-1553

• Various serial bus decodings (opt.): RS232/UART, I2C, SPI, CAN, CAN-FD,FlexRay, LIN, I2S, MIL-STD-1553, USB2.0; 4 decode channels

• Support Ethernet, USB2.0, and other protocol compliance analysis functions

• Auto measurement of 41 waveform parameters; full-memory hardware measurement function

• Various math operations: A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, LowPass, HighPass, BandPass, and BandStop built-in peak search functions

• Real-time eye diagram and and jitter analysis (opt.)

• Recording and playback functions for a maximum of 2,000,000 frames of hardware real-time and ceaseless waveforms

• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, AUX OUT; Web Control supported

• The photoelectric encoder operating knob prolongs its service life, guaranteeing more than 100,000 times of pressing operation and 1 million times of rotation operation, greatly improving its service life

• High-definition smart and quick-responsive shortcut menu display

• Support online upgrade

The DS80000 series high-bandwidth real-time digital oscilloscope is the 8th generation of RIGOL's self-developed oscilloscopes.

Based on the StationMAX II platform, it achieves a maximum real-time sampling rate of 40 GSa/s and an analog bandwidth of up to 13 GHz, 4 Gpts memory depth. In addition to hardware improvements, the DS80000 Series digital oscilloscope also provides a variety of user-friendly feature to ensure high-quality customer experience. It supports the compliance analysis of various protocols, helping you locate the problem in high-speed design and address the verification problem.

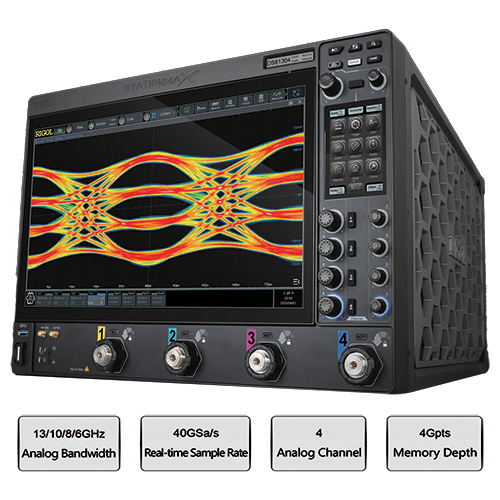

High Performance & Availability

• Up to 13 GHz analog bandwidth, powerful high-speed signal analysis

• Up to 40 Gsa/s real-time sample rate on each channel, powerful signal acquisition capability

• Up to 4 Gpts memory depth, allowing signal details to be presented clearly

• The tilt of the 15.6-inch high-definition large touch screen can be electronically adjusted with one button, supporting gesture-enabled operation, multi-pane windowing

• High-definition smart and quick-responsive shortcut menu display can be extended as a secondary display with user-defined quick operation menu

• Control with the SCPI command sets

• Provides USB/LAN/HDMI® interfaces to meet diversified test application scenarios

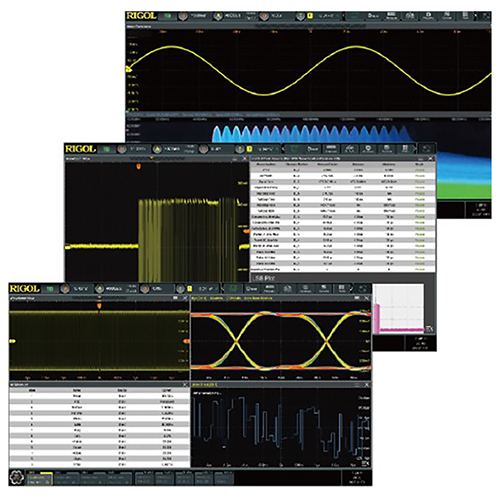

Powerful Analysis Capability

Various advanced analysis functions, compliance analysis tests of various protocols, jitter analysis, etc.

The RIGOL DS80000 Series Digital Oscilloscope is ideal for protocol compliance testing on interfaces such as PCIe and USB 2.0, as well as other high-speed standards. By supporting comprehensive compliance analysis, the DS80000 enables engineers to validate designs efficiently and ensure adherence to industry requirements.

Built on the StationMAX II hardware platform and UltraVision III architecture, the DS80000 delivers both deep memory (up to 4 Gpts) and high-fidelity signal acquisition. This combination allows the oscilloscope to capture longer waveforms at high resolution while maintaining signal integrity. Advanced analysis functions—including jitter measurements, eye diagrams, and signal integrity tools—support performance validation for embedded systems, serial and parallel buses, clock sources, and PLL circuits.

To further enhance usability, the DS80000 features the SmartProbe 2.0 interface with native 3.5 mm connections, ensuring seamless integration with modern probes while remaining backward compatible with earlier RIGOL accessories. This flexible design, paired with its high bandwidth, sampling performance, and deep analysis capabilities, makes the DS80000 an essential instrument for engineers tackling the most demanding high-speed device and system validation challenges.

In The Box

• Calibration Certificate

• Power Cord

• USB Cable x1

• Precision BNC Adapter, 3.5 mm to BNC (50 Ω) x2
