Siglent SHA860-BIAS Bias Out Option

• For use with Siglent SHA861A/SHA862A Analyzers

• Programmable DC Output: Provides +12 V to +32 V output voltage with fine 0.1 V step resolution.

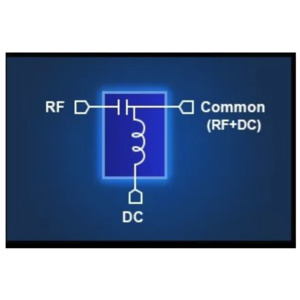

• Convenient Integration: Supplies power directly through the RF input port via an SMB(F) bias out connector.

• Streamlined Field Use: Eliminates the need for external power supplies when testing active antenna systems or inline amplifiers.

• Reliable Power Delivery: Designed to support a wide range of low-power RF components typically used in communication, broadcast, and monitoring systems.

The Siglent SHA860-BIAS is the DC bias-out option for the SHA861A and SHA862A analyzers. It provides a DC output range of 12-32V in 0.1V steps. This option is needed for powering active antennas, low-noise amplifiers (LNAs), and other bias-dependent RF components during field or lab measurements.
