Siglent SHA860-AMA Analog Modulation Analysis Option

Highlights:

• For use with Siglent SHA861A/SHA862A

• AM/FM/PM Demodulation: Analyze amplitude modulation (AM), frequency modulation (FM), and phase modulation (PM) with precision across carrier frequencies from 2 MHz to 3.6/7.5 GHz.

• Accurate Parameter Measurement: Evaluate modulation depth, frequency deviation, phase deviation, and modulation rate with high accuracy.

• Audio Listen and Tune: Demodulate and listen to AM/FM/PM signals with audio output for quick validation of signal integrity.

• Wide Dynamic Range: Measure signals from -30 dBm to +20 dBm, ideal for various transmitter and receiver tests.

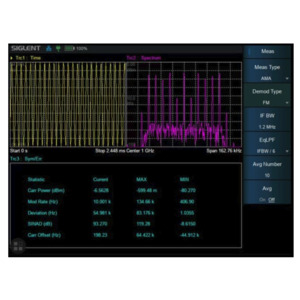

The Siglent SHA860-AMA is the analog modulation analysis option for the SHA851A and SHA852A analyzers. This option provides detailed measurement of AM, FM, and PM signals, supporting a wide range of RF testing applications. A series of indicators such as carrier power, modulation rate, and THD can be obtained through analysis.
