Siglent SHA860-RTA Real-Time Spectrum Analysis Option
For use with SHA860 Series Spectrum Analyzers
Real-Time Analysis Bandwidth: Up to 40 MHz standard, expandable to 110 MHz with the SHA860-B1A option.
Fastest Signal Detection: Achieves 3.51 µs 100% Probability of Intercept (POI) for detecting even extremely short transient signals.

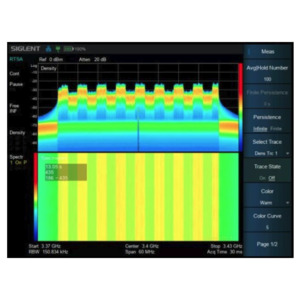

Advanced Analysis Tools: Supports Density views, Frequency Mask Triggering (FMT), 3D displays, Spectrograms, and Power vs. Time (PvT) measurements.
Enhanced Signal Insight: Visualize and analyze signal behavior over time, ideal for identifying sporadic interference, short bursts, and spectrum occupancy.
The SHA860-RTA option transforms the SHA860A into a real-time spectrum analyzer, capable of capturing dynamic RF events with exceptional speed and resolution. Equipped with 110 MHz real-time bandwidth and a processing speed of 300,000 FFTs per second, the SHA860A series of analyzers can detect transient signals as brief as 3.51 µs with 100% Probability of Intercept (POI). It includes advanced analysis tools such as frequency mask triggering (FMT), density plots, 3D views, spectrograms, and Power vs. Time (PvT) displays, enabling in-depth, multi-dimensional examination of complex signals—ideal for interference detection and spectrum analysis in fast-changing 5G environments.
