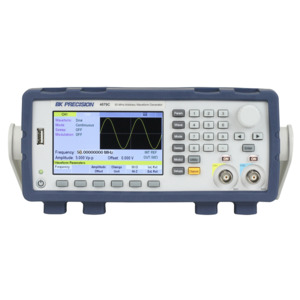

B&K 4078C Series – 4079C Arbitrary/Function Waveform Generator

The 4078C Series Arbitrary/Function Waveform Generators are versatile high-performance dual-channel arbitrary waveform generators comprised of a 30 MHz and 50 MHz model. They provide variable output voltages from 0 to 10 Vp-p into 50 ohms or up to 20 Vp-p into an open circuit, and a DC offset to bias the output signal at a desired level.

With up to 250 MSa/s sampling rate and 16-bit amplitude resolution, these instruments produce high fidelity waveforms without skipping points. Easily generate arbitrary waveforms of up to 4 million points from the front panel using the built-in editor tool. Additional features include AM, FM, and FSK modulation, frequency sweep capabilities, and variable edge pulse generation.

Key Facts:

• Generate waveforms up to 50 MHz (4079C)

• 2 channels with dedicated output ON/OFF buttons for each channel

• Up to 250 MSa/s sampling rate

• Waveform length up to 4 Mpts/ch

• 16-bit amplitude resolution

• Linear and logarithmic sweep

• Modulation techniques include: AM, FM, PM, BPSK, and FSK

• Continuous, triggered, burst, and gate modes

• Internal/external triggering and programmable markers

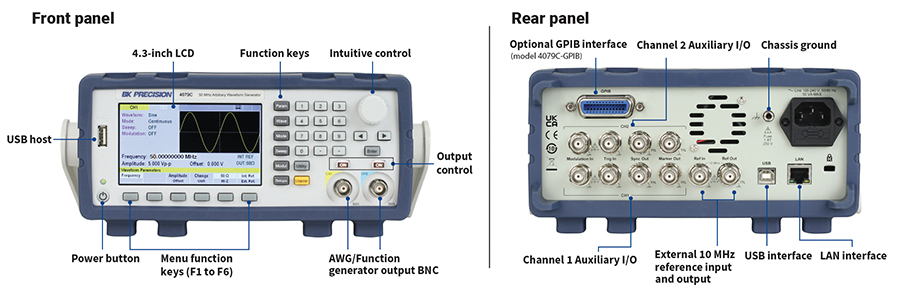

• 4.3-inch LCD and internal memory to store/recall instrument setups

• USB (USBTMC-compliant) and LAN interfaces standard

True AWG characteristics

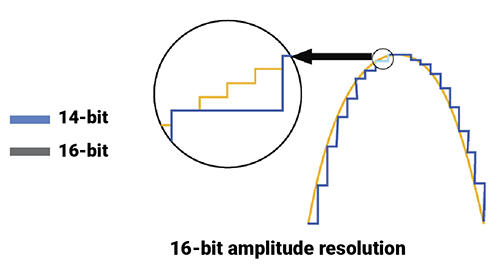

• 16-bit sampling for enhanced resolution resulting in lower distortion and more accurate waveforms

• Deep arbitrary waveform length adjustable from 2 points up to 4 million points

• Sampling rate up to 250 MSa/s

In The Box:

• 4079C - Arbitrary/Function Waveform Generator

• Power cord

• USB cable

• Test report

• Certificate of calibration
