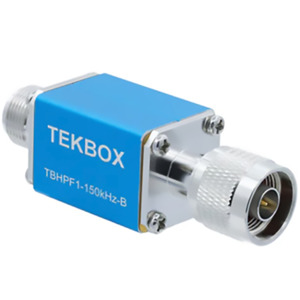

TekBox TBHPF1-150kHz-B High Pass Filter, 150 kHz, 50 Ohm, 3dB, 110 kHz - 3 GHz, 0.75A, TBHPF Series

Our Part #20018266

Mfr Part #TBHPF1-150kHz-B

TekBox TBHPF1-150kHz-B
TekBox
TekBox

TekBox TBHPF1-150kHz-B High Pass Filter, 150 kHz, 50 Ohm, 3dB, 110 kHz - 3 GHz, 0.75A, TBHPF Series

Our Part #20018266

Mfr Part #TBHPF1-150kHz-B

RoHS
$98.00EACH
RoHS

Specifications

  • High Pass Filter, symmetric, reflective, 50 Ohm
  • 3dB bandwidth: 110 kHz – 3 GHz
  • S11, 150 kHz – 110 MHz: < -18 dB
  • Topology: 5 th order Chebyshev
  • Filter capacitor voltage rating: 100V
  • Filter inductor saturation current: 0.75 A
  • Maximum input power at frequencies 300 kHz – 1 GHz: 10W
  • Connectors: N-Male / N-Female
  • Dimensions: 26 x 26 x 82 mm
  • Weight: ca. 100g

150 kHz Highpass Filter for protection of spectrum analyzer or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups.


BrandTekBox
SeriesTBHPF Series
$98.00EACH
