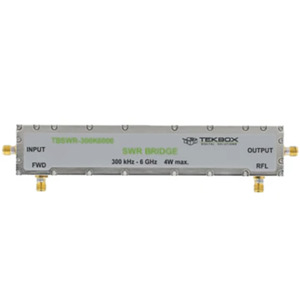

TekBox TBSWR-300K6000 General Purpose VSWR Bridge, 300 kHz - 6GHz, 50 Ohm, SMA-Female, TBSWR Series

Our Part #20018239

Mfr Part #TBSWR-300K6000

TekBox TBSWR-300K6000
TekBox
TekBox

TekBox TBSWR-300K6000 General Purpose VSWR Bridge, 300 kHz - 6GHz, 50 Ohm, SMA-Female, TBSWR Series

Our Part #20018239

Mfr Part #TBSWR-300K6000

RoHS
$637.00EACH
RoHS

Specifications

  • Characterized frequency range: 300 kHz – 6 GHz
  • Directivity:
    • 300 kHz – 700 kHz > 25 dB
    • 700 kHz – 4 GHz > 30 dB
    • 4 GHz – 6 GHz > 20 dB
  • Coupling:
    • 300 kHz – 3 GHz -20 dB ± 1 dB
    • 3 GHz – 6 GHz -19 dB ...-16 dB
  • Insertion loss:
    • 300 kHz– 1 GHz < 1.8 dB
    • 1 GHz – 6 GHz < 2.6 dB
  • Max. power:
    • 300 kHz – 6 GHz 4 W CW *)
    • *) Output shorted or open: max. 1 W
  • Operating temperature range: - 20 °C to + 40 °C
  • Impedance: 50 Ω
  • Port matching: > 20 dB
  • RF connectors : SMA-female
  • Dimensions: 170 mm x 40 mm x 32 mm
  • Weight: 280 g

VSThe TBSWR-300K6000 VSWR - bridge is designed for general purpose forward / reverse power measurements. The bridge combines the wide frequency range and directivity of a directional bridge and the low insertion loss of a directional coupler.

The TBSWR-300K6000 is characterized in the frequency range from 300 kHz to 6 GHz. The low insertion loss allows inline RF power measurements, and a variety of other applications. The insertion loss over the frequency range is typically between 1.7 and 2.6 dB, which is significantly smaller than the average 7 dB associated with VSWR - bridges.


BrandTekBox
SeriesTBSWR Series
$637.00EACH
