Triplett TEV300 EVCharger Kit

Features and Specifications

• Input Voltage: 230/400V 3 phase 50/60Hz
• IP Rating: IP40
• Power: Powered by Charging System
• LED GO/NO GO indication
• Indicates the status of the charger output socket (vehicle side)
• Proximity Pilot (PP) State (Cable Simulation) - Simulates 20A
• Built-In Control Pilot (CP) State
• CP Error “E” simulation

The Triplett Model TEV300 Electric Vehicle Charger Test Kit offers essential wiring tests for EV charging systems, featuring an LED GO/NO GO indicator to show the status of the charger output socket. It includes an LED chart for easy socket inspection without needing a connected vehicle. The Proximity Pilot (PP) State (Cable Simulation) can simulate a 20A current capability between PP and PE conductors. The built-in Control Pilot (CP) State (Vehicle Simulation Switch) simulates different vehicle states by connecting various resistances between CP and PE conductors. The CP Error “E” function simulates the station's response to a short circuit between CP and PE. This kit complies with EMC Directive (2014/30/EU), the Low Voltage Directive (2014/35/EU), and EN61010-1 standards.

What's in the Box

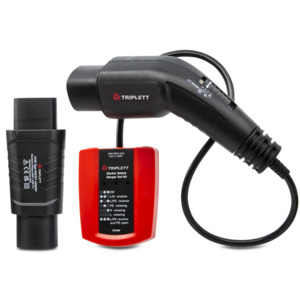

• TEV300 Electric Vehicle Charge
• (1) IEC62196-2 Type 1 female to male adaptor/converter
• Pouch case
