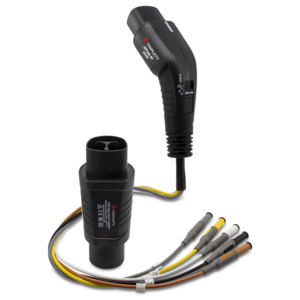

Triplett TEV200 EVProbe Kit

Features and Specifications

• Input Voltage: 230/400V 3 phase 50/60Hz
• PP Simulation: Setup internally to 20A
• Test Connector Type: IEC62196-2 Type 1 male
• Mains Socket Rating: Max 10A
• Charging connector wires are: L1, L2, L3, N, PE, CP and PP
• Built-In Control Pilot (CP) State (Vehicle Simulation Switch)
• CP Signal output terminals
• P Error “E” simulation

The Triplett Model TEV200 Electric Vehicle Probe Kit connects directly to your Digital Multimeter, Clamp Meter, or Multifunction Tester (MFT), enabling you to perform standard measurements such as voltage, frequency, phase indication, phase sequence, various RCD tests, insulation resistance, low ohm measurements, and line and loop impedances (if supported by the measuring device). It connects via wire (Standard Male Banana Type) between the EVSE charging point (Type-2 connector) and the measurement inputs of the DMM, Clamp, or MFT. The kit provides access to all charging connector wires: L1, L2, L3, N, PE, CP, and PP. The built-in Control Pilot (CP) State (Vehicle Simulation Switch) can simulate different vehicle states by connecting various resistances between the CP and PE conductors. The CP Signal output terminals allow you to connect an oscilloscope to check the waveform and amplitude of the CP signal. Additionally, CP Error “E” simulates the station's behavior when a short circuit is established between CP and PE.

What's in the Box

• TEV200 EV Probe
• (1) IEC62196-2 Type 1 female to male adaptor/converter
• Pouch case
