• Preparation for use
• Clean the surface of the measuring probe and the surface where you want to place the probe, for example, by using fine sand paper.
• Prepare the epoxy adhesive as instructed on the packaging and mix it thoroughly.
• If you use single-component super glue, open the tube.
• Apply the glue to the surface and place the measuring probe on the surface covered with glue, as described in more detail on the packaging.
• Use the cutter to slightly scratch the area around the measuring probe.

Operation

The simple design and an absolutely straightforward operation make it possible for the practitioner to use the adhesion tester as an instrument for daily adhesion tests. Using adhesive with rapid curing, the tests can be performed by the user in the shortest possible time.

The pull-off type adhesion tester is designed for measure the adhesion value of paints and other coatings on the base and between layers or cohesive materials. The tensile adhesion tester is manufactured according to EN13144 and ISO 4624.
The testing with the mechanical tensile adhesion tester is performed in the following way. On the testing cover a dolly is glued and, after the glue is dried, it is pulled-off with the spring-system of the device. The force which is applied for pulling-off the glued dolly is displayed as a numerical value on the scale of the device. This value is the value of adhesion.

In The Box

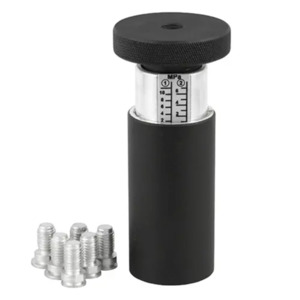

• 1 x Adhesion tester PCE-TAT 10
• 1 x Dollies: № 1 – 3 pcs., № 2 – 3 pcs.
• 1 x Ballerina (cutter) for cutting the area of testing
• 1 x Two-component epoxy adhesive
• 1 x CA glue
• 1 x Operating manual
• 1 x Case
