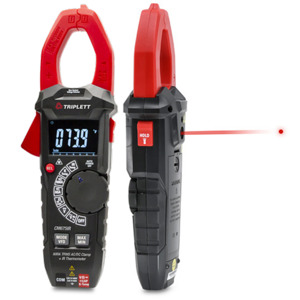

Triplett CM675IR AC/DC Clamp Meter with 4:1 IR Thermometer

Features and Specifications

• Built-in laser identifies the target area
• 6000 count color EBTN (Enhanced Black Twisted Nematic)
  display provides clear readings at a maximum angle
• 60-segment analog bargraph for viewing trends
• 1.3-inch (33mm) clamp jaw
• 600A AC/DC Current
• 1000V AC/DC Voltage
• 60 Megohm Resistance
• -4 to 1800 F (-20 to 1000 C) Type-K Temperature
• -22 to 662 F (-30 to 350 C) Infrared Temperature
• 4:1 Distance to Target Ratio
• 99.99mF Capacitance
• 10kHz Frequency
• Easily measure current without breaking the circuit by clamping around a single conductor
• Offers Min/Max captures, Data Hold, and Auto power-off functions
• Flashlight assists in illuminating dark areas for better visibility

Measure the Surface Temperature of Objects without Making Contact

The Triplett Model CM675IR True RMS Clamp Meter with Infrared Thermometer is an innovative tool for safe and efficient electrical measurements. It can measure AC and DC currents up to 600A non-intrusively by clamping around the conductor, preserving circuit integrity and saving time. It features a 4:1 Infrared Thermometer, which allows for instant non-contact surface temperature readings, aided by a built-in laser for quick target identification. The meter offers a wide range of readings, including Resistance, Capacitance, Frequency, Type K Temperature, Diode Test, and Continuity, all displayed on a 6000 count color EBTN display and a 60-segment analog bargraph for trend analysis. Additional features include a VFD low pass filter, NCV Detector with LED, Relative Mode, Min/Max capture, Data Hold, and an Auto power off function.

What's in the Box

• CM675IR AC/DC Clamp Meter
• Test Leads
• Type-K Thermocouple Bead Probe
• (3) AAA batteries
• Carrying case
• 1-year warranty
