HDPQ Xplorer Plus 30/300/3000A FLEX Package, Qty (1) DRANFLEX3003XLB24 3 phase CT, Qty (1) DRANFLEX3000XLB24 1 Phase CT

• Package HDPQ-P-XAFLEX3KPKG
• 3000A/24" FLEX Package (Qty 1 three phase flex probe 30/300/3000Amp and qty 1 single phase flex probe 30/300/3000Amp)
• Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more
• IEC 61000-4-30 Class A Edition 3 PQ compliant (certificate)
• Power Quality, demand & energy analysis - Complete Power Monitoring Surveys
• Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more
• Colored Cables & Connector Panel - Safety, Convenience & Ease Of Use
• Dran-View 7 Software - Powerful Data Analysis, Reporting & Remote Control
• Ethernet & Wireless Communications for Remote Control & Data Downloading - Be Safe & Productive
• Tests 50/60Hz and 16/25Hz

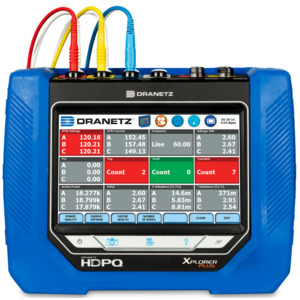

The Dranetz HDPQ® Xplorer Plus (portable) power quality analyzer represents the top of the line in the Dranetz HDPQ Plus family of products. It is a true hand-held portable instrument with a built in 7", tablet-like touch LCD display and is simply the best PQ monitor available from Dranetz, or any other manufacturer! The Dranetz HDPQ Xplorer Plus includes all of the features of the Dranetz HDPQ Visa Plus and Guide Plus power quality instruments but adds high speed transient capture capabilities to 1us so you’ll never miss an event!

The Dranetz HDPQ Xplorer Plus offers best in class PQ monitoring capabilities. It measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, and more. With its high-speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse won’t miss a PQ event. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low-medium-high frequency transients through peak, waveshape, rms difference and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.

The Dranetz HDPQ Xplorer Plus enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and review data and control the instrument using either the VNC interface in our Dran-View 7 software or a free VNC client on your Smartphone or Tablet from anywhere with connectivity to the instrument.

In The Box

• SCC-HDPQ Soft Carry Case:
  Individual storage compartments for the instrument, CT’s, voltage cables and more.
  Dimensions: 12” L x 18” W x 9” D (30.5cm L x 45.7cm W x 22.9cm D)
• 1- DRANFLEX3003XLB24 Three phase flex probe 30/300/3000Amp:
  3A to 3000Amp (3 ranges), 1.5V output, Dranetz Hypertronics connector, 8” dia. maximum conductor size, 1000V Max rated.
• 1- DRANFLEX3000XLB24 Single phase flex probe 30/300/3000Amp:
  3A to 3000Amp (3 ranges), 1.5V output, Dranetz Hypertronics connector, 8” dia. maximum conductor size, 1000V Max rated.
• Voltage Cable Set 118970-G1:
  Includes: 8 – Six ft. (183cm) measurement cables: 1 Red, 1 Yellow, 1 Blue, 1 Gray, 4 White; 4 – Black alligator clips; 4 – White alligator clips; 4 – Black 25 cm stackable jumpers.
  Compatible with portable and permanent systems with 4mm voltage connectors.
• AC Adapter 118317-G1:
  AC Adapter: 100-240Vac 50/60Hz, includes: US, EURO, UK, AUSTRALIA and CHINA plug adapters.
• Dran-View® 7 DV7E-PX:
  Dran-View is a Windows based software package that enables power professionals to simply and quickly visualize and analyze power and energy monitoring data.
