Uni-T UTG4122A Arbitrary Waveform Generator

Features and Specifications

• 120MHz sine waveform output, 1µHz full-band resolution
• 30MHz/40MHz/50MHz pulse waveform, adjustable rise/fall time
• 500MSa/s sampling rate, 16 bits vertical resolution
• Standard dual channels, supporting stand-alone or channel-coupling output mode
• 32Mpts arbitrary waveform depth, 7GB non-volatile arbitrary waveforms
• Versatile modulation options: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
• Frequency cymometer range: 100mHz - 800MHz
• 8 inch TFT LCD,WVGA (800×480)
• Standard Ports: USB Host, USB Device, LAN, 10MHz Input, 10MHz Output, Frequency Counter, FSK Trig, Modulation In

UTG4122A Overview

Designed with engineering professionals in mind, the Uni-T UTG4122A waveform generator stands as a versatile solution across a multitude of application scenarios. Whether you're working on cutting-edge research, developing communication systems, or fine-tuning intricate designs, the UTG4122A has you covered.

At its core, the UTG4122A features an impressive maximum output frequency of 120 MHz, making it ideal for high-frequency signal generation. With this capability, you can explore a wide range of applications, from RF testing to signal characterization.

Experience waveform control with ease. The UTG4122A's impressive frequency resolution of 1 µHz allows you to hone waveforms with precision. Whether you're simulating complex communication protocols or analyzing intricate phenomena, accuracy is at your fingertips.

The UTG4122A's blazingly fast 500 MSa/s sampling rate ensures faithful signal reproduction. Capture transient events, simulate real-world scenarios, or validate your designs — all with confidence in waveform fidelity.

Vertical resolution matters, especially when probing analog circuits or creating custom waveforms. With 16 bits of resolution, it faithfully represents even the subtlest nuances in your signals.

Two independent channels open up a world of creativity. Simultaneously generate complex waveforms, create differential signals, or synchronize multiple instruments seamlessly. The UTG4122A adapts to your needs, making it a versatile companion in your lab.

With an expansive 32Mpts waveform length, the UTG4122A lets you craft intricate signals. Whether you're emulating sensor outputs, designing custom modulation schemes, or testing nonlinear systems, this canvas empowers your creativity.

Navigating menus is easy. The UTG4122A's intuitive menu system simplifies your workflow. Set waveform parameters—shape, amplitude, frequency, duty cycle, and DC offset—with ease. Say goodbye to tangled configurations; say hello to streamlined operation.

Analog or digital? The UTG4122A offers both. Dive into a repository of modulation possibilities: Amplitude Modulation (AM), Frequency Modulation (FM), Phase Modulation (PM), and more. Adapt your signals to various communication systems, explore novel modulation techniques, and push the boundaries of what's possible.

Achieve waveform perfection with the 16-order harmonic output feature. Generate harmonics of the fundamental frequency, harmonize with other devices, and unlock new realms of signal fidelity.

The Uni-T UTG4122A isn't just a waveform generator — it's your ally in the pursuit of excellence. From labs to production floors, it stands ready to elevate your testing experience. Let the UTG4122A be your silent partner in engineering.

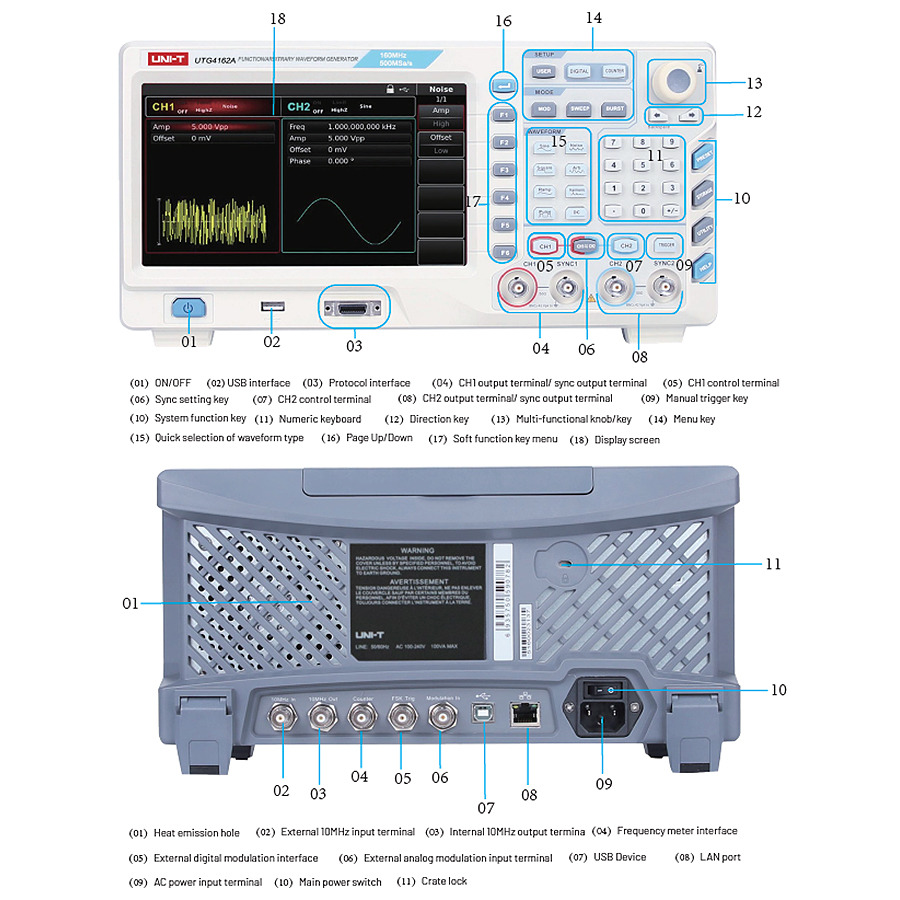

UTG4000A Series Multimeter Panel Features

The UTG4000A Series

The UTG4000A series function/arbitrary waveform generator employs direct digital synthesis to produce precise and steady waveform outputs with a resolution down to 1µHz. This cost-effective, high-performance, and versatile dual-channel function/arbitrary waveform generator is capable of creating accurate, stable, clean, and low-distortion output signals. It also offers a high-frequency square wave with swift rising and falling edges. Its user-friendly interface, superior technical specifications, and intuitive graphic display facilitate quicker task completion and enhance work productivity. This multi-functional device is designed to cater to your current and future testing needs.

Four Models include:

• Performance-Series
  • UTG4082A - 80MHz, 2Ch, Arbitrary Waveform Generator
  • UTG4122A - 120MHz, 2Ch, Arbitrary Waveform Generator
  • UTG4162A - 160MHz, 2Ch, Arbitrary Waveform Generator
  • UTG4202A - 200MHz, 2Ch, Arbitrary Waveform Generator

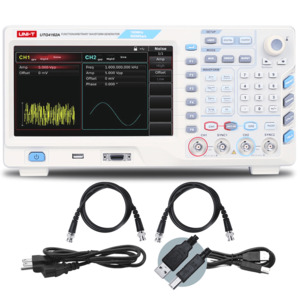

What's in the Box

• UTG4122A Arbitrary Waveform Generator
• Power cord
• USB2.0 printing cable
• BNC straight line
