Uni-T UTD2102CL+ Digital Oscilloscope

Features and Specifications

• Bandwidth: 100MHz
• Analog Channels: 2
• Real-Time Sample Rate: 500MSa/s
• Max. Memory Depth: 64kpts
• Waveform Capture Rate: 5,000wfms/s
• Display: 7-inch TFT, LCD, WVGA

UTD2102CL+ Overview

Introducing the Uni-T UTD2102CL+ Digital Storage Oscilloscope (DSO), a powerful tool designed to tackle the most challenging electrical engineering tasks with precision and versatility. With a bandwidth of 100MHz, two analog channels, a real-time sample rate of 500MSa/s, a memory depth of 64kpts, and a waveform capture rate of 5,000wfms/s, this instrument is equipped to handle complex calculations efficiently, a key requirement for designing advanced circuits and systems.

This DSO's zoom function allows for in-depth analysis of intricate electrical signals by closely examining waveform characteristics, identifying anomalies, and optimizing system performance. It also features an easy-to-use XY mode for measuring phase differences, quickly resolving phase alignment issues in circuits, and ensuring signal synchronization, which is crucial for applications like motor control systems.

The AUTO mode of the UTD2102CL+ simplifies complex setups, reduces human error, and speeds up waveform analysis, making it a valuable tool for testing and troubleshooting. The DSO also offers FFT spectral analysis for comprehensive insight into signals, enabling you to identify and address harmonic distortions, noise, and vibration issues in power systems and electronic components.

Its automatic parameter measurement feature ensures precise measurements, which are essential for validating circuit designs and diagnosing signal anomalies in complex systems. The DSO also provides a variety of triggers for controlling signal capture, allowing you to focus on signals of interest while filtering out noise and unwanted data for accurate measurements.

An invaluable tool for diagnosing faults in multi-component systems, the alternating trigger feature enables the simultaneous analysis of signals from different sources. The Uni-T UTD2102CL+ Digital Storage Oscilloscope is your partner in navigating the complexities of electrical engineering challenges. By unlocking the potential of this advanced tool, you can elevate your work to new heights of precision and accuracy.

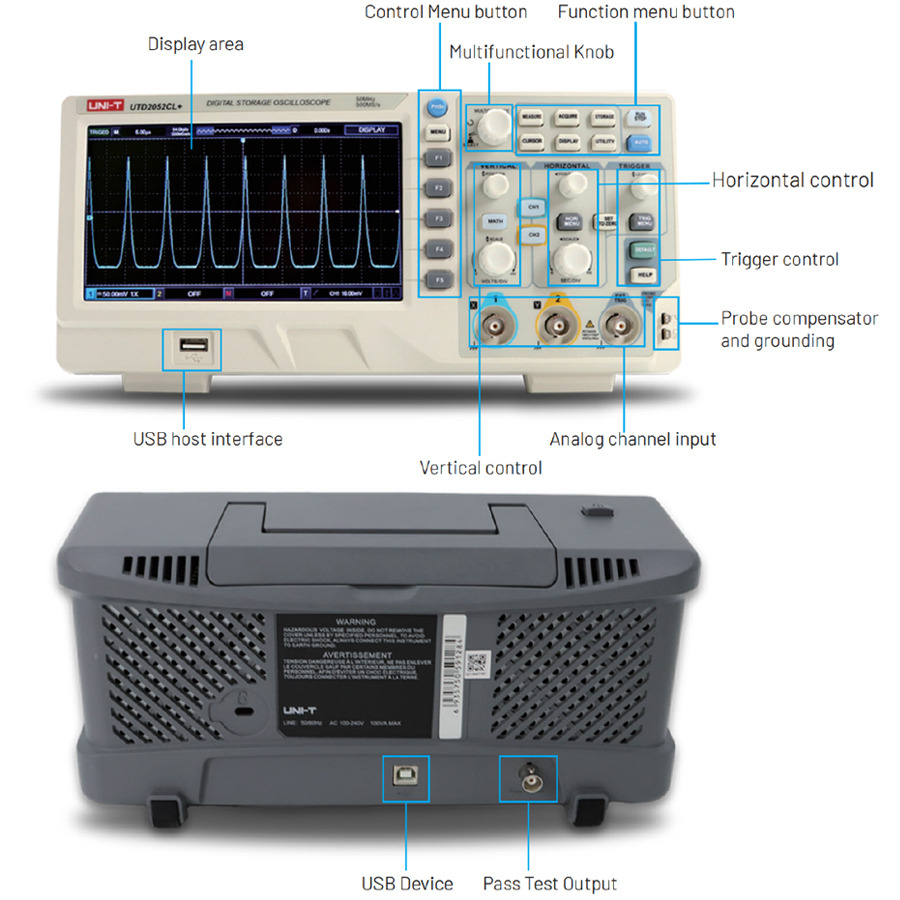

UTD2000 Series (UTD2000CL/CL+) Panel Features

UTD2000 Series DSO - 9 Models (2 Subset Series)

The UTD2000CL+ Series is designed to equip educational institutions with digital storage oscilloscopes that closely mirror those utilized in the industrial sector. This is intended to bridge the equipment disparity between academia and industry, enabling graduates to seamlessly transition into the workforce. The UTD2000CL series is a dual channel digital storage oscilloscope with a maximum sampling rate of 500MS/s. The specifications of the UTD2000CL+ Series have been enhanced from the original UTD2000CL series with a sampling rate of 1 GS/s.

The UTD2000CEX+ Series digital storage oscilloscope is a beginner-friendly bench tool that fulfills essential measurement needs. Its user-friendly interface is designed for straightforward usage. The UTD2000CEX+ Series offers a bandwidth of 50MHz, 100MHz, or 200MHz, a real-time sampling rate of 1GSa/s, dual-channel functionality, and other performance features, along with a storage depth of 64kpts. Given its wide range of applications, this model is apt for sectors like communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research and development, education, and more.

What's in the Box

• UTD2102CL+ Digital Oscilloscope
• Power cord
• USB cable
