Megger MIT410/2 Insulation/Continuity Tester

Features and Benefits

• Adjustable insulation test voltage of 50 V, 100 V, 250 V, 500 V and 1000 V + PI, DAR
• 600 V Trms AC and DC voltage measurement
• Frequency measurement 15 - 400 Hz
• Designed for Electrical and Industrial testing
• Insulation testing up to 1000 V and 200 GΩ range
• Stabilized insulation test voltage
• Single range, faster continuity testing from 0.01 Ω to 1 MΩ
• New case design with optional magnetic hanging strap
• Live circuit detection and protection
• CAT IV 600 V and IP54 weatherproof rating
• PASS/FAIL on limit alarms
• Language Group: LG2, English, Spanish, Portuguese and Italian

The Megger MIT410/2 is a handheld insulation and continuity tester designed for use across electrical, industrial, automotive, and avionics applications. As part of the MIT400/2 series, it offers selectable test voltages of 50V, 100V, 250V, 500V, and 1000V, enabling insulation resistance measurements up to 200 GΩ. It features advanced diagnostic functions including Polarization Index (PI), Dielectric Absorption Ratio (DAR), and timed insulation tests. The tester also supports continuity testing from 0.01 Ω to 10 MΩ, frequency measurements from 15 to 450 Hz, and AC/DC voltage measurements up to 600V. Safety is prioritized with CAT IV 600V and IP54 ratings, live circuit detection, and auto polarity reversal. The MIT410/2 includes a switched probe for one-handed operation, PASS/FAIL alarms, and a redesigned rugged case with a six-cell battery compartment. It runs on standard AA or rechargeable NiMH batteries and is engineered for high accuracy and reliability in demanding environments.

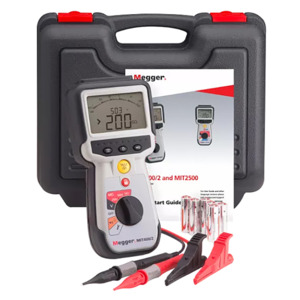

What's in the Box

• MIT410/2 Tester
• Red/Black Silicone test leads with Probes + Clips
• SP5 remote switch probe
• Batteries 6 x AA Alkaline
• Carry case
• Calibration certificate
