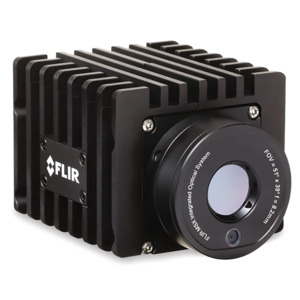

A70 95 Degrees Research and Development Kit

• Includes fixed, non-changeable 95° lens
• FLIR Research & Development Kits include everything (camera, cables, power supply, FLIR Research Studio software, etc.) needed to view, acquire, analyze, and share thermal measurement data
• Start testing quicker with limited ramp-up time thanks to simple connections and the included FLIR Research Studio software.
• A 640 × 480 pixel resolution infrared camera and built-in visible camera with FLIR MSX
• Stream data wireless to FLIR Research Studio software with the included Wi-Fi connectivity
• Kits are also available with 29 degree and 51 degree non-changeable lenses
• 30Hz framerate

FLIR A50/A70 Research & Development Kits are affordable, ready-to-use solutions for thermal imaging analysis in proof-of-concept electronics testing and R&D applications. Providing thousands of temperature measurement points, users can eliminate thermal guesswork, reduce product development time, and increase product efficiency and reliability.

These kits are the right choice for engineers and technicians who need to fully understand the thermal profiles of their systems or require defensible thermal data to support critical decisions. Users can quickly view, record, analyze and share thermal data with the included FLIR Research Studio software or take advantage of industry-standard connections to integrate into custom software applications when needed.

In The Box

• Camera with Image Streaming configuration and 95° lens
• Hard case
• Ethernet cable M12 to RJ45, 2 m
• Ethernet cable M12 to RJ45F, 0.3 m
• Ethernet cable CAT6, 2 m/6.6 ft
• Cable M12 to pigtail, 2 m
• Gigabit PoE injector 16 W, with multi-plugs
• Antenna WLAN 2.4/5 GHz + Wi-Fi
• Cooling plate
• Focus adjustment tool
• Visual camera including MSX
• Research Studio - 1 Year Subscription (Online Activation)
• Printed documentation including the username and password for log in to the web interface of the camera
