• Typical VSWR of 1.3:1 up to 10 GHz
• SMA Interface compliant with MIL-STD-348A
• SMC Interface compliant with MIL-STD-348A
• Gold Plated Brass Contact
• 3 µ-in min Gold Contact Plating

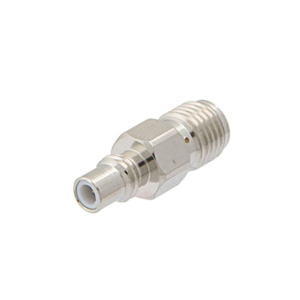

Pasternack’s PE9147 SMA female to SMC jack adapter features a female-to-jack configuration. The PE9147 adapter operates up to 10 GHz and the SMA connector is mechanically compatible with commercially available 3.5mm and 2.92mm (K) connectors.

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment, especially where the number of connect/disconnect cycles is high. An RF, microwave, or millimeter-wave adapter is connected to the equipment, while the commonly changed connection is made with the adapter, which can be easily replaced when it wears out after extensive use; such adapters are referred to as connector savers.
