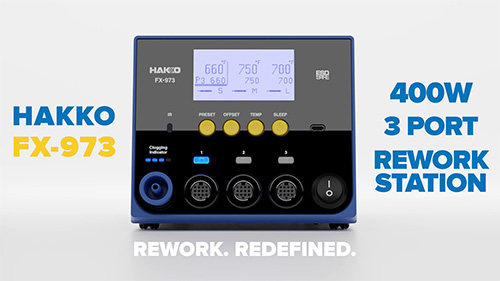

The Next Generation: FX-973 Rework Station

Power up your productivity with the new HAKKO FX-973 3-Port Rework Station. Delivering a massive 400W of high-performance rework power for today’s most demanding electronics. With support for up to 10 handpieces, a wide temperature range, a built-in vacuum pump, and full compatibility with FR-4103/4104 desoldering tools, the FX-973 is your all-in-one solution for precision, efficiency, and versatility.

Product Highlights

• Power: 400 Watts

• Temp Ranges 50°C-500°C (120°F-940°F)

• 10 Handpiece Options Available

• Hakko Control Software

• FG-100/101B Wireless IR Offsetting

*500°C (940°F) temperature only works with the FX-9707 and FX-9708 Heavy-Duty handpieces

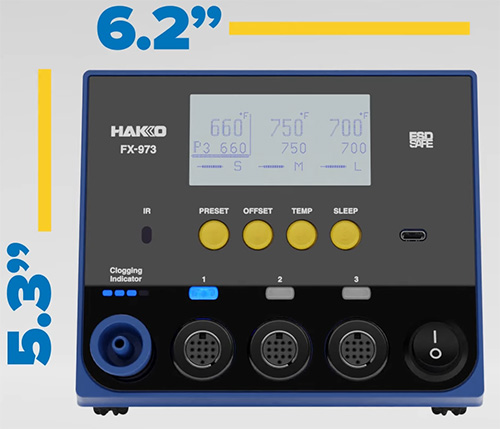

Built to Industrial Standards

The FX-973 Rework Station is packed with advanced features designed for high-demand environments. With a powerful 400W output, it also includes a low temperature alarm, sleep timer, automatic shut-off, password protection, and five customizable preset slots — all engineered to deliver consistent, reliable performance in any production setting.

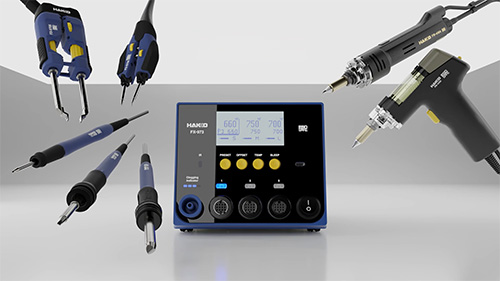

Versatile Soldering & Desoldering Handtools

The FX-973 Rework Station is engineered for ultimate flexibility, supporting a wide range of precision handtools to meet every rework need. Compatible with eight different soldering handpieces, it’s ready for everything from delicate micro work to heavy-duty applications:

• FX-9703 Micro Soldering Iron

• FX-9701 Standard Soldering Iron

• FX-9707 Heavy-Duty Soldering Iron

• FX-9704 N2 Micro Soldering Iron

• FX-9702 N2 Soldering Iron

• FX-9708 N2 Heavy-Duty Soldering Iron

• FX-9705 Rework Tweezers

• FX-9706 Micro Tweezers

For desoldering, the FX-973 features a built-in vacuum pump and supports both of HAKKO’s powerful desoldering handpieces:

• FR-4104 Pencil-Style Desoldering Tool

• FR-4103 Handgun-Style Desoldering Tool

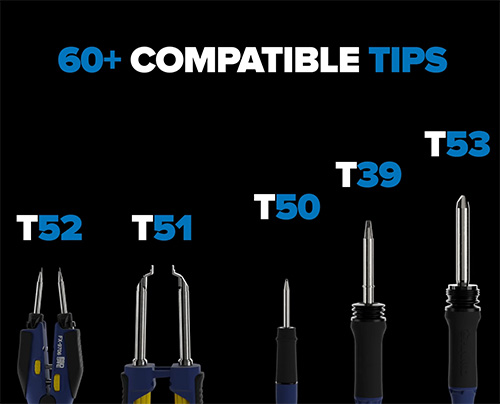

60+ Compatible Tips

Customize your rework setup with over 60 tip options, each designed to match the precision and performance of every compatible handpiece. Whether you're tackling fine-pitch components or high-mass joints, there’s a tip for every task.

• T50 Series Tips, compatible with FX-9703 Micro Soldering Iron

• T39 Series Tips, compatible with FX-9701 Standard Soldering Iron

• T53 Series Tips, compatible with FX-9707 Heavy-Duty Soldering Iron

• T51 Series Tips, compatible with FX-9705 Standard Soldering Tweezers

• T52 Series Tips, compatible with FX-9706 Micro Soldering Tweezers

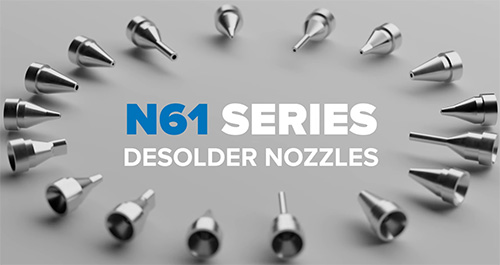

Precision Nozzles for Every Job

Choose from a wide selection of nozzle shapes and sizes, designed to tackle even the most challenging rework tasks. Whether you're working with hard-to-reach components, micro lands, or flat terminals, there's a nozzle to match your application. Compatible with both desoldering tools:

• FR-4104 Pencil-Style Desoldering Tool

• FR-4103 Handgun-Style Desoldering Tool

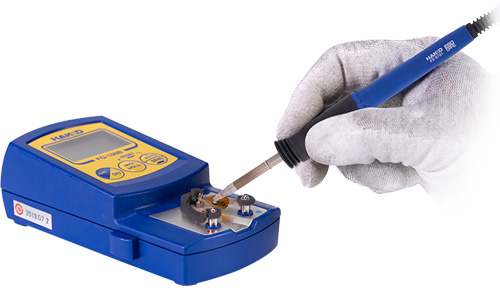

Wireless IR Auto-Cal

The FX-973 works seamlessly with the FG-100/101B Tip Thermometer for measuring tip temperature and automatically offsetting the temperature on the station.

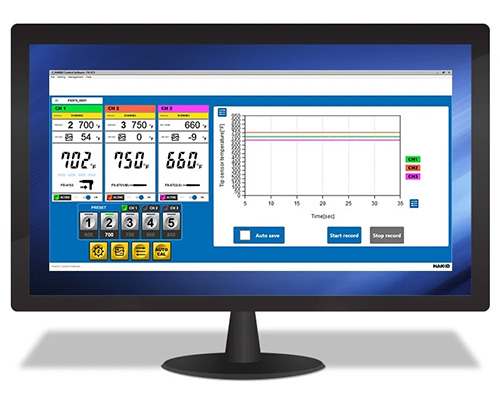

Software Integration Performance Tracker

The HAKKO FX-973 features the HAKKO Control Software, which allows for direct temperature operation, setting presets and parameters, displays real time tip temperature and the ability to record tip temperatures, user profiles and auto-cal measurements.

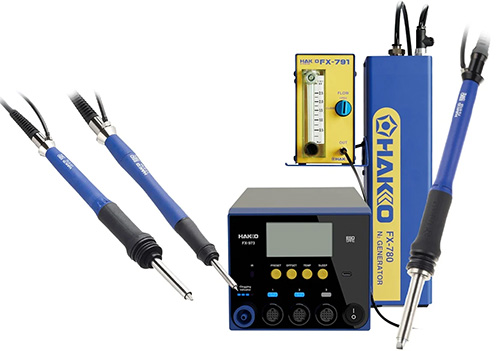

Soldering With Nitrogen

The FX-973 standard, micro and heavy-duty handpieces also work with the N2 attachment chamber for the ability to solder with nitrogen.

N2 Iron Handpieces:

• FX-9702

• FX-9704

• FX-9708

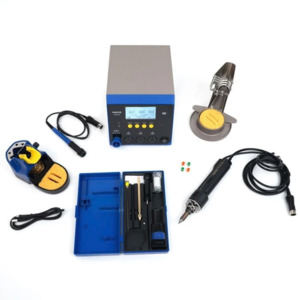

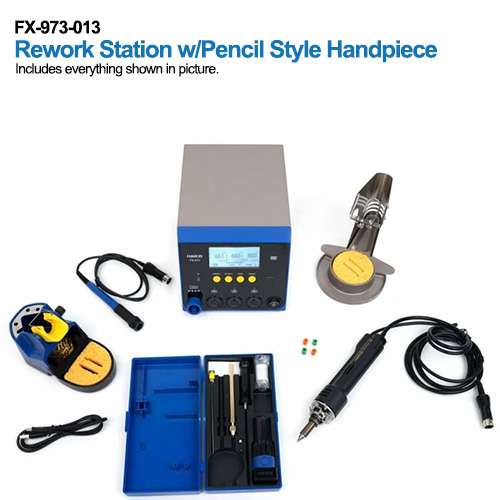

What's In The Box?

• FX973-011 3-Port Rework Station

• FX-9701 Soldering Iron

• FH-215 Soldering Iron Holder

• FR-4104 Desoldering Handpiece

• FH410-02 Desoldering Handpiece Holder

• B5348 Green Color Bands (2 pcs)

• B5388 Orange Color Bands (2 pcs)

• B2419 Power Cord

• B5385 USB-C Cable

• C5030 Maintenance Kit that includes: 1.0 mm Cleaning Pin (B1087); Heating Cleaning Pin (B1215); 1.0 mm Cleaning Drill (B1303); Nozzle Wrench (B5106); x2 Station Filter (A5077); A5044 - x4 Handpiece Filter (A5044).

• Instruction Manual
