• For splicing or repairing low voltage cables in telecommunications, voice, and data applications
• No need to strip individual wires before crimping
• Moisture-resistant sealant protects wires from corrosion
• Use Kinetic Super Wire Stripper/Crimper (33-719) tool for proper crimping force and crimping angle
• Permanent connection once crimped
• Moisture resistant internal gel protects the splice when located in outdoor enclosures
• UY2 conductor range of 19-26 AWG with a maximum insulation diameter of 0.082"
• Cap pierces the conductor insulation when fully seated
• Butt splice - both 2 ports are connected

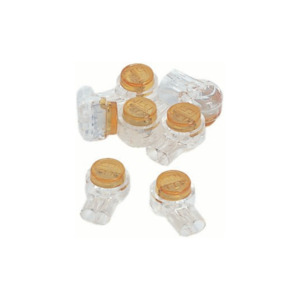

IDEAL IDC Insulation Displacement Connectors (jellybeans) are perfect for splicing or repairing low voltage cables in telecommunications, voice, and data applications. They feature an internal moisture-resistant gel sealant to protect the splice in outdoor locations. These 2 position yellow UY2 butt-splice connectors are suitable for 2 wires. Crimping these connectors is easy using a parallel action tool to ensure even crimps. The IDEAL Kinetic Super Wire Stripper/Crimper (33-719) tool is designed for use with all jellybean connectors. Simply insert the unstripped conductors into the ports until they pass the internal bus bar and reach the end of the connector, then, place the connector assembly on the tool's flat pad surface and slowly squeeze until the colored cap snaps down into place over the conductors.
