Mitutoyo
Mitutoyo 565-151A Manual Gauge Block Comparator, No Calibration Certificate, 565 Series
Our Part #10317985
Condition:NEW
Mfr Part #565-151A
Mitutoyo
Mitutoyo 565-151A Manual Gauge Block Comparator, No Calibration Certificate, 565 Series
Our Part #10317985
Condition:NEW
Mfr Part #565-151A
CallEACH
- Description
- Specifications
- Available in Inch/Metric
- Measuring units are laser hologage (upper and lower)
- SPC output function allows for quick and easy data management in real time with optional data cable
- Automatic comparator GBCD-100A is also available

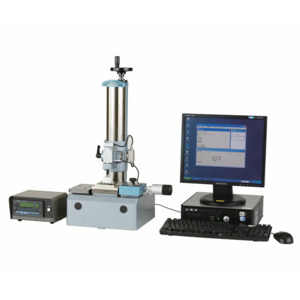

The Mitutoyo manual gage block comparator uses dual gage heads to easily compare gage blocks between 0.1mm/.004” and 250mm/10” with the standard gage block on the GBCD-250 manual gage block comparator. The differential dual gaging heads assure the operator of a high-accuracy measurement which is easy to use.
Brand: Mitutoyo
Accuracy: ±0.03+0.3L/1000µm
Range: 0.004 - 10"
Resolution: .0000001" / 0.000001mm
Certificate of Calibration: No
Dimensions: 455mm x 318mm x 691mm
Operating Temperature: 20±1°C
Product Type: Depth Gauges
Product Weight: 114 lb.
Series: 565 Series
Units of Measurement: Laser hologage
