Desco
Desco 42567 ESD Mat Kit, Statfree Z2, 3 Layer, Black, 0.125 In X 36 In X 72 In
Our Part #10317675
Condition:New
Mfr Part #42567
Desco
Desco 42567 ESD Mat Kit, Statfree Z2, 3 Layer, Black, 0.125 In X 36 In X 72 In
Our Part #10317675
Condition:New
Mfr Part #42567
$362.70EACH
- Description
- Specifications
- Documents
- Heat Fused 3-Layer Vinyl Composite
Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner. - Dissipative (1 x 106 < 1 x 109 ohms Rtt) Abrasion Resistant Top Layer - Limited Lifetime Warranty
Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat. - Conductive (<104 Rtt) Mesh Middle Layer Bottom Layer - Limited Lifetime Warranty
The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with monitors. Electricals will not drift for the life of the mat. - Dissipative (1 x 106 < 1 x 109 ohms Rtt) Cushioned Bottom Layer - Limited Lifetime Warranty
Provides additional energy absorption for components susceptible to physical shock. - Laser Engraved With ESD Protective Symbol, Specs, and Manufacturer
Identifies ESD protective product for control & auditing purposes. - Lead-free RoHS compliant

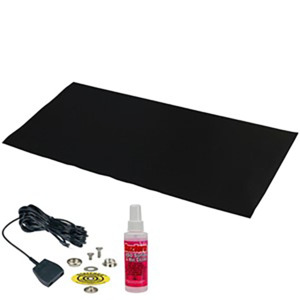

- Includes 14213 Ground Cord
Brand: Desco
Color: Black
Dimensions: 0.125 x 36 x 72"
ESD Safe: Yes
Material: Heat fused vinyl composite
Resistance To Ground: 3 x 10^6 to < 1 x 10^9 Ohms
Standards: ANSI/ESD S20.20, ANSI/ESD S4.3
Tensile Strength: >302 psi
Thickness: 2.125"
$362.70EACH
