Complete Rework System with DT530 (Shop Air Not Required) 230V

The JBC RMSD-2QA is a 230 volt product and not designed for use in the United States. If you are in the US, please see RMSD-1QA.

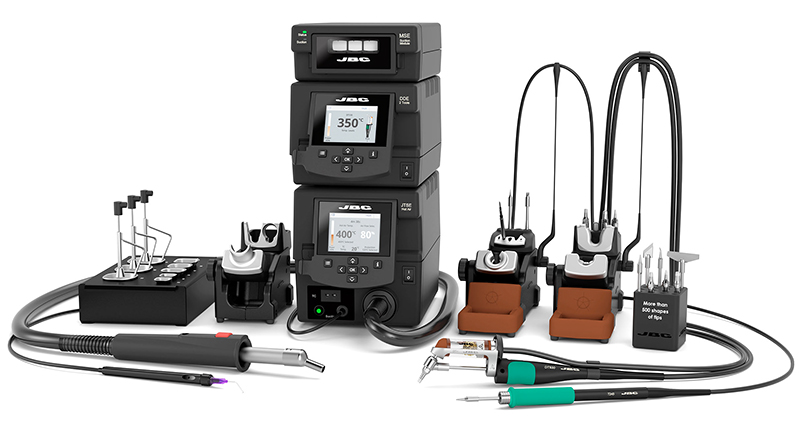

The JBC RMSD-2QA is a complete rework system, with soldering, desoldering and hot air functionality. The RMSD-2QA includes a DDE two channel control unit, JTSE hot air station, T245-A soldering iron, DT530-A desoldering iron and much more.

This system also includes an MSE-B electric desoldering module, therefore shop air is NOT required for operation.

Please note: tips are sold separately for the T245-A handle. The DT530-A desoldering iron includes a D530003 already installed. The hot air handle includes three nozzles (JN2012, JN2015, and JN2020).

Features and Benefits:

• ***230 VOLT VERSION – NOT FOR USE IN THE UNITED STATES***

• If you are in the US, please see RMSD-1QA

• Soldering, hot air and vacuum functionality

• Includes DDE two channel control unit

• Includes JTSE hot air unit and hose set

• Includes T245 general purpose iron (tips sold separately)

• Includes DT530 desoldering iron (with D530003 nozzle)

• Includes MSE-B electric desoldering module

• Desoldering module has an electric pump and does not require shop air

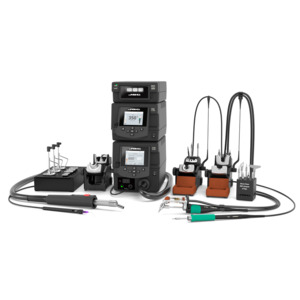

JBC RMSD-2QA Station (230V)

DDE 2-Tool Control Unit operates with 2 soldering or desoldering tools simultaneously and is fully compatible with 10 different JBC Tools delivering up to 150 W per tool.

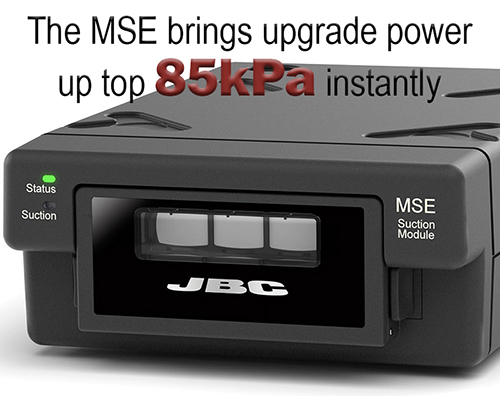

MSE Electric Desoldering Module is ideal for a complete desoldering process. Delivering unmatched suction power and achieving an 85% vacuum.

JTT Heater Hose Set allows you to repair all medium and large SMDs quickly and safely, even the biggest QFPs and PLCCs.

T245 General Purpose Handle is perfect for both SMDs and jobs with high-power requirements (e.g. ground plane soldering).

DT530 Angled Desoldering Iron is ideal for removing through-hole components and excess solder during SMD rework.

JBC's wide range of Tools feature soldering and rework irons that guarantee maximum efficiency. The short distance tip-to-grip allows you more control and the highest precision. JBC tools are currently the smallest the lightest and the most ergonomic.

Intelligent Heat System

Delivers the highest rework quality, powered by JBC's Most Efficient Soldering System and advanced Intelligent Heat Management, which optimizes heat control to extend tip life and minimize energy consumption.

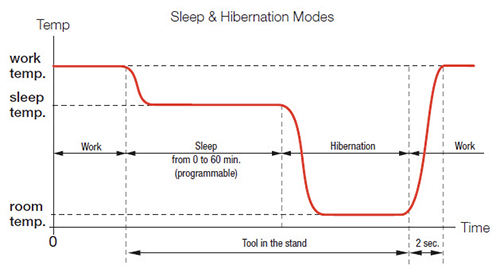

Sleep and Hibernation Modes

Sleep Mode automatically lowers the tip temperature below the solder melting point when the tool rests in the stand. It prevents the dissolution of the iron tip coating into molten solder.

After a configurable period of tool inactivity in the stand, the tool enters Hibernation Mode. It cuts off the power supply, making the tip reach room temperature, thus preventing oxidation and saving energy.

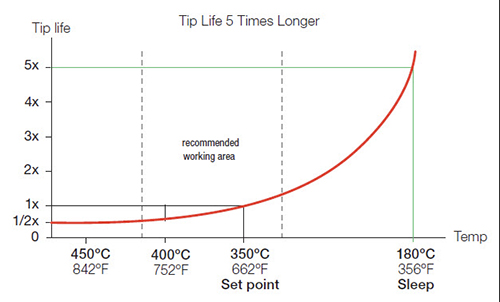

Longer Tip Life

Tip life increases exponentially by using lower temperatures as shown. Using Sleep Mode, the temperature is further reduced, which multiplies tip life by 5.

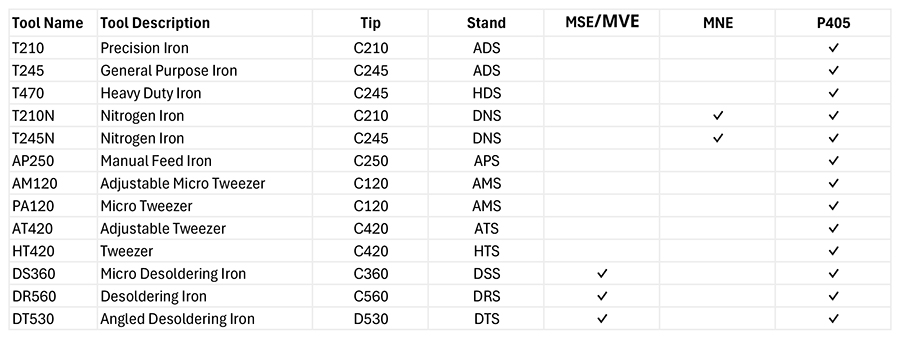

DDE Station Tool Compatibility

The DDE control station is compatible with several additional tools, covering a wide variety of soldering and rework applications.

The chart below provides an overview of each tool, along with a compatible stand and tip series.

JBC RMSD-2QA Product Details:

• Nominal power: 700 W

• Selectable temperature: 150 to 450 °C / 300 to 840 °F

• Air flow regulation: 5 to 50 SLPM

• Vacuum: 30% / 228 mmHg / 9 inHg

• Profiles: 25 (up to 10 steps for each), 1 preset profile

• Type K TC connector: 1 for Control & Protection

• ESD safe: Meet ANSI / ESD S20.20-2021

• Equipotential bonding: Connection to EPA
