• One trigger controls all tool functions
• Crimping head rotates 350°
• Used with Greenlee KC22 and KA22 series crimping dies

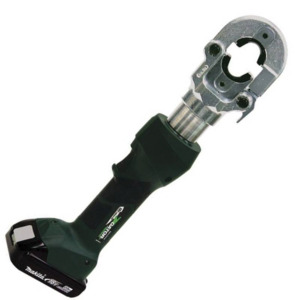

Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In Line tool style is light weight and very easy to control One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Accepts Greenlee KC22 and KA22 series crimping dies Includes 04292 die adapters which can be used with all industry "W" style crimping dies and Greenlee KD6 style dies Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger.

Product Details

• Sub Brand : Gator
• Type : Die style crimper
• Application : 6 Ton Crimping
• Standard : C/US UL Listed
• Wire Size : 8 AWG - 600 kcmil Cu
• Wire Size : 8 AWG - 350 kcmil Al
• Overall Length : 15.75 IN (438mm)
• Crimping Force : 12,000 lbs. (53 kN)
• Crimping Capacity : 600 kcmil (MCM) Copper
• Crimping Capacity : 350 kcmil (MCM) Al
• Connector Type : Color-coded lugs and splices
• Handle Type : In-Line Style with over molded rubber grip
