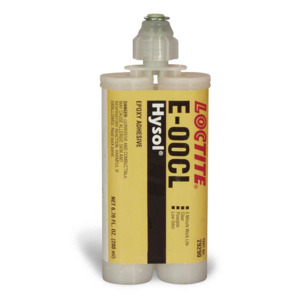

EA E-00CL is a fast setting, flowable, industrial grade epoxy adhesive. Once mixed, the two-component epoxy cures at room temperature to form a clear, rigid, machineable bondline. When fully cured, the epoxy is resistant to a wide range of chemicals and solvents and acts as an excellent electrical insulator. Typical applications include general purpose bonding, potting, or encapsulating. Works on a variety of plastic, metal, glass, rubber, wood, and ceramic substrates. Well suited for applications that require a clear bondline.

Features:

• Brand: Hysol®
• Series: E-00CL
• Product Type: Epoxy Adhesive
• Hardness: 80Shore D
• Material Compatibility: Metal, Wood, Plastic, Glass, Rubber, Ceramic
• Color: Part A:Clear/Yellow, Part B:Light Cream
• Primary Color: Part A:Clear/Yellow, Part B:Light Cream
• Mix Ratio: 1:1
• Physical Form: Liquid
• Cure Time: 24h
• Viscosity Measurement: Part A:7000 to 13000, Part B:2200 to 4500mPa/s
• Chemical Composition: Part A:Epoxy Resin, Substituted Silane, Epoxy Resin, Part B:Polymercaptan Hardener, Benzyldimethylamine, Monoethanolamine
• Specific Gravity: Part A:1.15, Part B:0.98
• VOCs Content: <10g/L
• Odor: Part A:Epoxy, Part B:Mercaptan
• Cure Type: Room 77°F
• Dielectric Strength: 16kV/mm
• Elongation at Break: 13%
• Tensile Strength?: 3800psi
• Container Capacity: 200ml
• Container Type: Dual Cartridge
• Applications: Bonding
• Package Quantity: 10CA
