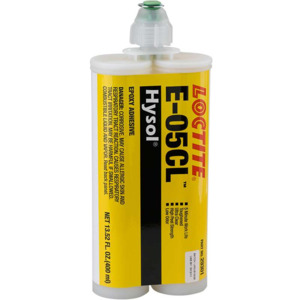

Hysol Product E-05CL is a fast-setting, toughened, medium-viscosity, industrial grade epoxy adhesive. Once mixed, the two-component epoxy cures at room temperature with low shrinkage and forms an ultra-clear bondline with excellent peel resistance. When fully cured, the epoxy is resistant to a wide range of chemicals and solvents and acts as an excellent electrical insulator.

Details:

• Brand: Hysol®
• Series: E-05CL
• Product Type: Epoxy Adhesive
• Hardness: 55Shore D
• Material Compatibility: Plastic, Wood, Metal, Glass, Ceramic, Rubber, Masonry
• Color: Part A:Clear/Yellow Part B:Clear
• Primary Color: Part A:Clear/Yellow Part B:Clear
• Mix Ratio: 100:105
• Physical Form: Liquid
• Cure Time: 24h
• Viscosity Measurement: Part A:1900 Part B:2800mPa/s
• Chemical Composition: Part A:Epoxy Resin, Neopentyl Glycol Diglycidyl Ether, Substituted Silane, Epoxy Resin Part B:Polymercaptan Hardener, Tertiary Amine, Monoethanolamine
• Specific Gravity: Part A:1.11 Part B 1.12
• VOCs Content: <10g/L
• Odor: Part A:Mild Part B:Mercaptan
• Cure Type: Room 77°F
• Dielectric Strength: 400V/mil
• Elongation at Break: 80%
• Tensile Strength‎: 270psi
• Container Capacity: 400ml
• Container Type: Dual Cartridge
• Applications: Flex Circuits, Cable Boots, Staking Fillet Bonds
• Package Quantity: 6CA
