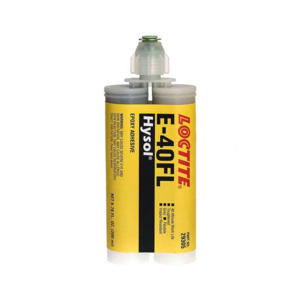

EA E-40FL is a toughened, medium viscosity, industrial grade epoxy adhesive with a medium working life. Once mixed, the two-component epoxy cures at room temperature to form a flexible, gray bondline with excellent resistance to shock and impact. When fully cured, the epoxy is resistant to a wide range of chemicals and solvents, and acts as an excellent electrical insulator. Typical applications include bonding plastic, metal, glass, wood, ceramic, rubber, and masonry materials where flexibility is required. Suited for low-stress, high-impact bonding applications of dissimilar materials. EA E-40FL can also be used for repairing strain gauges, sealing seams on fiberglass components, repairing printed circuit boards, bonding stainless steel inserts, and rubber hose to steel tubing.
Details:
- Brand: Hysol®
- Series: E-40FL
- Product Type: Epoxy Adhesive
- Hardness: 75Shore D
- Material Compatibility: Metal, Plastic, Glass, Wood, Ceramic, Rubber, Masonary
- Color: Part A:Light Part B:Gray
- Primary Color: Part A:Light Part B:Gray
- Mix Ratio: 1:1
- Physical Form: Liquid
- Cure Time: 24h
- Setting Time: 130min
- Viscosity Measurement: Part A:60000 to 90000 Part B:50000 to 85000mPa/s
- Chemical Composition: Part A:Epoxy Resin, Kaolin, Epoxy Resin Part B:Kaolin, Polyglycol Diamine, Phenolic Acid, Glycerol, Substituted Aminophenol, Silica,Amorphous,Fumed,Crystal-Free, Substituted Aminophenol, Epoxy Resin, Titanium Dioxide, Ti-Oxid Anatase
- Specific Gravity: Part A:1.13 Part B:1.1
- VOCs Content: <10g/L
- Odor: Part A:Faint Epoxy Part B:Mild
- Cure Type: Room 77°F
- Dielectric Strength: 16kV/mm
- Elongation at Break: 22%
- Tensile Strength‎: 3210psi
- Container Capacity: 200ml
- Container Type: Dual Cartridge
- Applications: Bonding
- Package Quantity: 10CA
