• Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app
• Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback
• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
• Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speeds, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350°
• Tools automatically retract when the crimping cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee battery-powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
• Interchangeable adapters permit the use of a wide variety of crimping dies
• Accepts Kearney PH4/P14 dies without adapter
• Assist handle is included to provide better balance for the tool

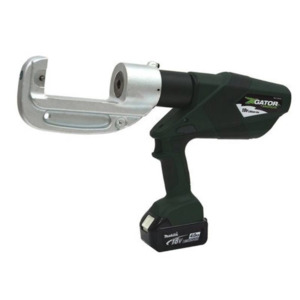

This is a EK1550LX120 Greenlee Crimper


Product Details:

• Sub Brand : Gator
• Type : Die style crimper
• Application : 15 Ton Crimping
• Standard : C/US UL Listed
• Wire Size : 8 AWG - 1000 Kcmil Cu & Al
• Overall Length : 19.625 IN (498mm)
• Crimping Force : 30,000 lbs. (134 kN)
• Crimping Capacity : 1000 Kcmil (MCM) Cu & Al
• Connector Type : Color-coded lugs and splices
• Handle Type : Pistol Style with over molded rubber grip
