Loctite

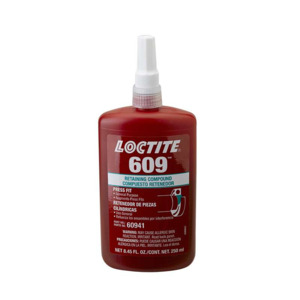

Loctite 135513 Retaining Compound, Press Fit, General-Purpose, 250 ml Bottle, 609 Series
Our Part #10304038
Condition:NEW
Mfr Part #135513
Loctite
Loctite 135513 Retaining Compound, Press Fit, General-Purpose, 250 ml Bottle, 609 Series
Our Part #10304038
Condition:NEW
Mfr Part #135513
Hazardous
Cannot Ship Air
$EACH
Multiples of: 10
Hazardous
Cannot Ship Air
- Description
- Specifications
- Documents
- Low viscosity
- Augments press fits
- Fluorescent under UV for quality control
- Meets Mil Spec: Mil-R-46082B (a regional approval)
- Operating temperature: -55°C to 150°C (-65°F to 300°F)
LOCTITE® 609
General purpose, low-viscosity bonding of cylindrical parts
This high strength, general purpose, anaerobic-curing retaining compound is designed for bonding cylindrical fitting parts. Mil spec.
To lock bushings and sleeves in housings on shafts, augment press fits, or to bond any close-fitting cylindrical parts, LOCTITE® 609 is a good choice. The green, high strength, anaerobic-curing retaining compound cures in the absence of air between close fitting metal surfaces, providing a high strength and corrosion-free bond. Typical applications include rotor to shafts in fractional and subfractional horsepower motors.Brand: Loctite
Container Type: Bottle
Physical Form: Liquid
Alternate Product Number: 135513-30769
Applications: Retaining
Color: Green
Composition: Polyglycol Dimethacrylate, 2-Hydroxyethyl Methacrylate, Ethyl Methacrylate Homopolymer, Cumene Hydroperoxide, Saccharin, Adhesion Promoter, Cumene
Container Size: 250 mL
Flash Point: >199.94°F
For Use With: Cylindrical Fitting
Height: 1"
Length: 9"
Odor: Mild
Operating Temperature Range: -65 to +300°F
Series: 609 Series
Shelf Life: 730 days
Specific Gravity: 1.1
Storage Temperature: 46 to 82°F
Viscosity: 110 to 140mPa/s
VOCs: 0.22%
Width: 4"
$EACH
Multiples of: 10
