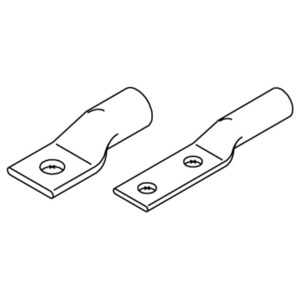

3M™ Oil Seal Lugs OS Series are copper one hole and two hole lugs that feature a solid oil stop. These lugs are for copper conductors only and are used with 3M™ PILC Termination Kits 5800 Pb Series on paper insulated lead covered (PILC) cables. Each lug is electro tin plated to resist electrolytic corrosion.

• Standard barrel ensures a secure fit and offers reliable performance
• A solid oil stop seals oil and moisture
• Made of copper for good conductivity and tin plating for corrosion resistance
• Rated for 35 kV voltage applications
• RoHS 2011/65/EU Compliant

• For Use With: Copper Conductor Only
• Material: Copper
• Outside Diameter: 19.1 mm
• Part Number: OS0250 CU LUG
