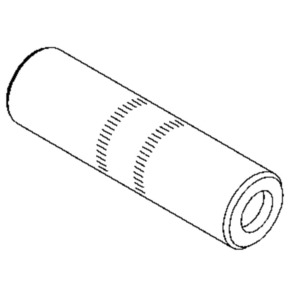

The 3M™ Aluminum Connectors CI Series are for splicing applications on aluminum or copper cable conductors. The CI Series aluminum connectors are specially designed for use with 3M™ QS, QS II and QS III Pre molded Power Cable Splice Bodies. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. These connectors meet the requirements of ANSI C119.4. Compact, Strande.

• Standard barrel ensures a secure fit and offers reliable performance
• Built-in solid center oil stop allows for correct positioning
• For use with the 3M Cable Splice Kits QS-I, QS-II and QS-III Series
• Made of aluminum for good conductivity and tin plating for corrosion resistance
• Rated up to 35 kV
• Meets ANSI C119.4
• RoHS 2011/65/EU Compliant

• Connector Type: Compression
• For Use With: Aluminum or Copper Conductors
• Outside Diameter: 23.1 mm
• Part Number: CI-3/0
